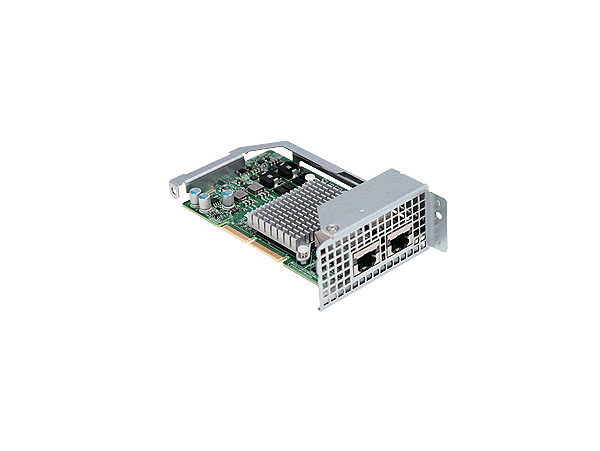

Supermicro AOC-CTG-i2T
- Nhà sản xuất: Supermicro
- Mã sản phẩm TM516
- Tình trạng: Liên hệ đặt hàng
- 5.820.000 VNĐ
Giá trên chưa bao gồm thuế VAT 10%
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Supermicro AOC-CTG-i2T
Add-on Card |
| The Most Advanced Ethernet
Adapter for High-Density Server Systems The Supermicro AOC-CTG-i2T is one of the lowest power and most cost effective 10GBase-T adapter solutions in today's data center marketplace. The auto-negotiation feature between 1GbE and 10GbE provided by the AOC-CTG-i2T offers users the backwards compatibility they need for a smooth transition to 10GbE. It reliably addresses the demanding needs of bandwidth intensive applications at a fraction of the cost of traditional 10GbE adapters by utilizing cost-effective RJ-45 connectors at a much longer cabling distance. The Supermicro AOC-CTG-i2T 10GbE adapter is truly a best-in-class solution for advanced data centers. |
Key Features |
| • Dual RJ45 Connectors • 2U MicroLP Form Factor • PCI Express 2.1 (2.5GT/s or 5GT/s) • Intel® QuickData Technology • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments • Jumbo Frames Support up to 15.5KB • Load Balancing on Multiple CPUs • iSCSI Remote Boot Support • Fibre Channel over Ethernet (FCoE) • Support the most popular Network Operating Systems (NOSs) • Support RJ-45 Category-6 or 6A • RoHS compliant 6/6 |
Specifications |
| • General - Intel® X540 10GbE controller with integrated 10GBase-T copper PHYs - Compact size 2U MicroLP form factor - PCI-E x8 2.1 (2.5GT/s or 5GT/s) interface - Dual RJ-45 connectors with speed up to 10Gb/port - Load balancing on multiple CPUs - Intel® PROSet Utility for Windows® Device Manager - Maximum power consumption: about 13W • I/O Features - Intel® QuickData Technology: DMA engine that enhances data acceleration and lowers CPU usage - Support jumbo frames of up to 15.5KB - 802.1q VLAN support - Two integrated independent 10GBase-T interfaces operate at 10GBase-T (10Gb/s) and 1000Base-T (1Gb/s) modes - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize interrupt overhead of and allow load-balancing between multiple cores/CPUs - Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux environments • Performance Features - TCP/UDP Segmentation Offload - IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload - Supports Fibre Channel over Ethernet (FCoE) - Low latency interrupts - DCA support • Virtualization Features - Support for Virtual Machine Device Queues (VMDq and Next-generation VMDq) - L2 Ethernet MAC address and VLAN filters - PC-SIG SR-IOV implementation - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segments • Manageability Features - Preboot eXecuation Environment (PXE) support - Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters - iSCSI remote boot • OS Support - Windows® Server 2012 (x64 edition) - Windows® 8 (x64 edition and 32-bit) - Windows® Server 2008 R2 (x64 edition and 64-bit) - Windows® Server 2008 (x64 edition, 64-bit, and 32-bit) - Windows® 7 (x64 edition and 32-bit) - Windows® Vista (x64 edition and 32-bit) - Windows® Server 2003 (x64 edition, 64-bit, and 32-bit) - VMWare - RedHat EL, SuSe SLES - FreeBSD • Cables Support - RJ-45 Category-6 up to 55m; Category-6A up to 100m • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W) - Card PCB dimensions: 12.3cm (4.8") x 7.0cm (2.75") |
Parts List |
|||
| Part Number | Qty | Description | |
| Add-on Card | AOC-CTG-i2T | 1 | 10 Gigabit Ethernet Adapter |
| Bracket | BKT-0067L BKT-0068L |
1 1 |
MicroLP PCB bracket (pre-installed) I/O bracket (pre-installed) |
| Driver Disk | CDR-NIC | 1 | Driver and Software CDROM |
Optional Parts List |
|||
| Part Number | Qty | Description | |
| CAT6A Cable | CBL-NTWK-0603 | - | RJ45 CAT6A 550MHz Rated Blue 3 ft patch cable |
| CAT6A Cable | CBL-NTWK-0604 | - | RJ45 CAT6A 550MHz Rated Blue 5 ft patch cable |
| CAT6A Cable | CBL-NTWK-0605 | - | RJ45 CAT6A 550MHz Rated Blue 6 ft patch cable |
| CAT6A Cable | CBL-NTWK-0606 | - | RJ45 CAT6A 550MHz Rated Blue 9 ft patch cable |
| CAT6A Cable | CBL-NTWK-0607 | - | RJ45 CAT6A 550MHz Rated Blue 10 ft patch cable |
| CAT6A Cable | CBL-NTWK-0608 | - | RJ45 CAT6A 550MHz Rated Blue 12 ft patch cable |
| CAT6A Cable | CBL-NTWK-0609 | - | RJ45 CAT6A 550MHz Rated Blue 15 ft patch cable |
| CAT6A Cable | CBL-NTWK-0610 | - | RJ45 CAT6A 550MHz Rated Blue 18 ft patch cable |
| CAT6A Cable | CBL-NTWK-0611 | - | RJ45 CAT6A 550MHz Rated Blue 21 ft patch cable |
| CAT6A Cable | CBL-NTWK-0612 | - | RJ45 CAT6A 550MHz Rated Blue 24 ft patch cable |
