Output



Output Power Capacity 10 kW / 10 kVA

Max Configurable Power 10 kW / 10 kVA

Nominal Output Voltage 230V

Output Voltage Distortion Less than 3%

Output Frequency (sync to mains) 50/60Hz +/- 3 Hz

Other Output Voltages 220, 240

Crest Factor 3 : 1

Topology Double Conversion Online

Waveform Type Sine wave

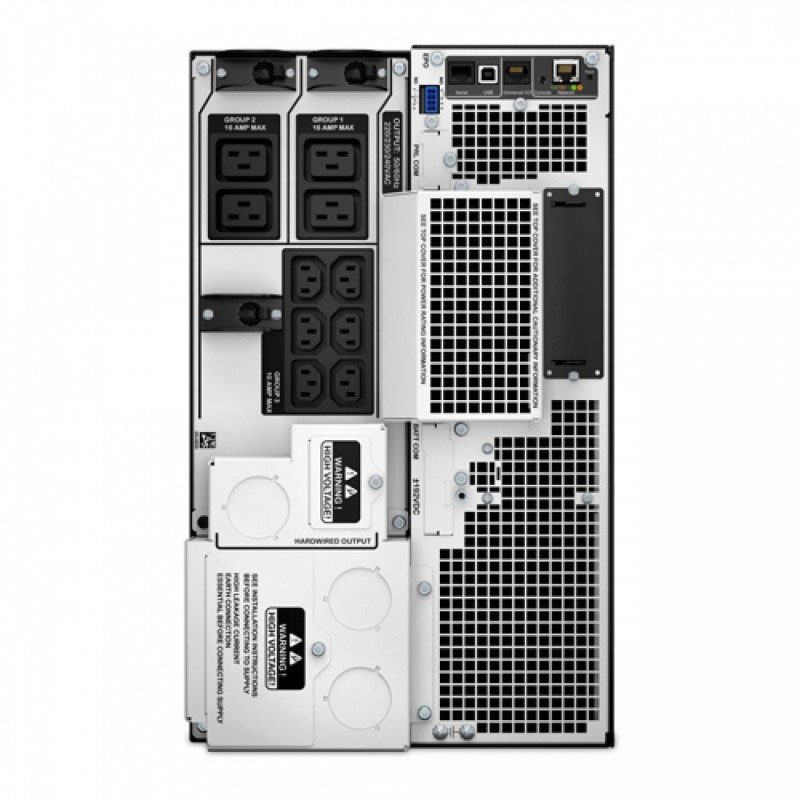

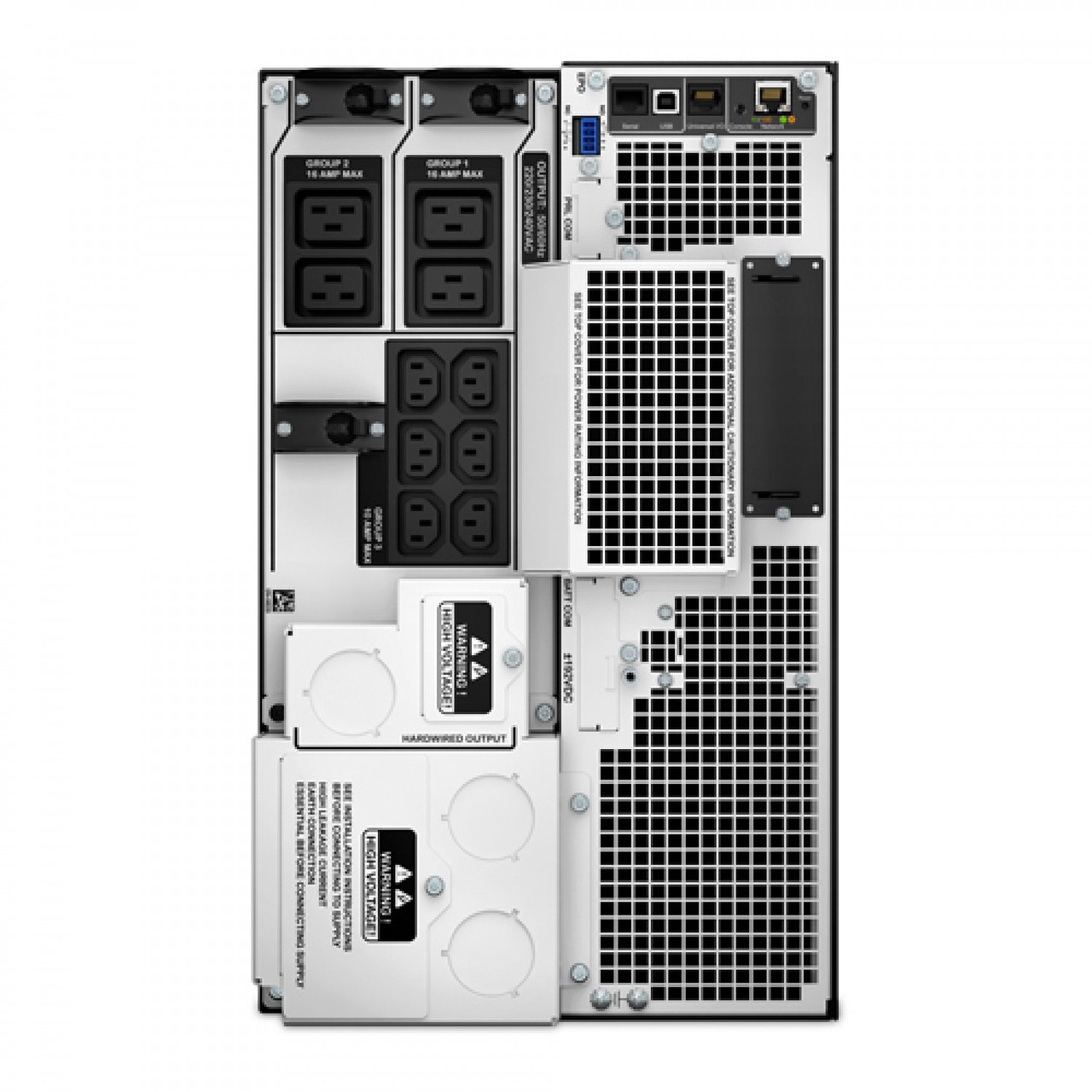

Output Connections

(1) Hard Wire 3-wire (H N + G)

(6) IEC 320 C13 IEC 320 C13

(4) IEC 320 C19 IEC 320 C19

(3) IEC Jumpers

Bypass Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage 230V, 400V 3PH

Input Frequency 40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G)

Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations 160 - 275V

Input voltage adjustable range for mains operation 100 - 275V

Other Input Voltages 220, 240, 380, 415

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 1.50 hour(s)

Replacement Battery APCRBC140

RBC™ Quantity 2

Extended Run Options APC Smart-UPS SRT 10000VA 230V

Runtime Graph

Curve Part Number(s)

A SRT10KXLI

B SRT10KXLI

+ (1)SRT192BP2

C SRT10KXLI

+ (2)SRT192BP2

D SRT10KXLI

+ (3)SRT192BP2

E SRT10KXLI

+ (4)SRT192BP2

F SRT10KXLI

+ (5)SRT192BP2

G SRT10KXLI

+ (6)SRT192BP2

H SRT10KXLI

+ (8)SRT192BP2

I SRT10KXLI

+ (10)SRT192BP2

Hover over the line on the graph above to view the runtime at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph View Runtime Chart

Energy Use/Efficiency

Load Efficiency

25% 93.9%

50% 95.0%

75% 94.9%

100% 94.6%

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph

Communications & Management

Interface Port(s) Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Available SmartSlot™ Interface Quantity 1

Control panel Multi-function LCD status and control console

Audible Alarm Audible and visible alarms prioritized by severity

Emergency Power Off (EPO) Yes

Surge Protection and Filtering

Surge energy rating 480 Joules

Physical

Maximum Height 432.00 mm

Maximum Width 263.00 mm

Maximum Depth 715.00 mm

Net Weight 111.82 KG

Shipping Weight 126.82 KG

Shipping Height 461.00 mm

Shipping Width 600.00 mm

Shipping Depth 1000.00 mm

Color Black

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95%

Operating Elevation 0-3000 meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95% no%

Storage Elevation 0-15000 meters

Audible noise at 1 meter from surface of unit 55.00 dBA

Online Thermal Dissipation 2002.00 BTU/hr

Protection Class IP 2
