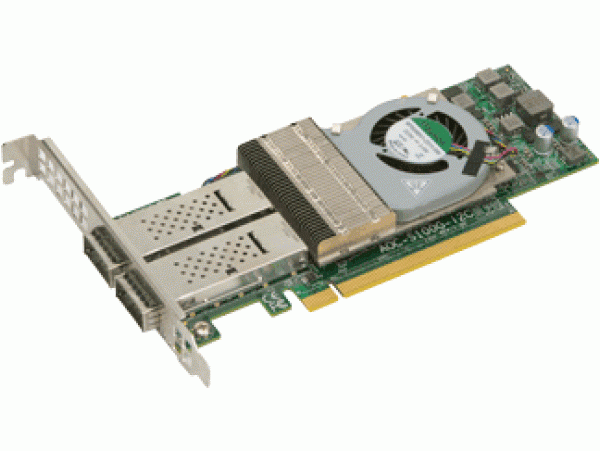

AOC-S100G-i2C. Standard Low-Profile Dual-port 100GbE controller with 2x QSFP28 ports

Key Features

• Intel® Red Rock Canyon FM10420
• Dual QSFP28 ports (each port supporting 100GbE, 4x 25GbE, 40GbE, 4x10GbE)
• Fits in PCIe 3.0 x16, two PCIe 3.0 x8 enabled by BIOS
• Standard Low Profile Half Length Form Factor
• DMA controller for packet transfer
• TCP/UDP checksum offload
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Jumbo Packets (up to 15KB per packet)
• Asset Management features (SMC systems only)

Specifications

• General

• Intel® Red Rock Canyon FM10420

• Dual QSFP28 ports (each port supporting 100GbE, 4x 25GbE, 40GbE, 4x10GbE)

• Fits in PCIe 3.0 x16, two PCIe 3.0 x8 enabled by BIOS

• Standard Low Profile Half Length Form Factor

Features

• L2/L3 Port-to-Port switching, routing and meshing

• Open vSwitch, OpenDaylight & OpenStack Integration (via Hardware Offloads API)

• Direct Assignment (SR-IOV & VMDq) underneath policy control

• Tunnel Offloads and Tunnel Termination (VXLAN, NVGRE, Geneve)

• Wildcard Matching for ACLs, Service Chaining & SDN

• Hardware Accelerated Virtual Routing, Load Balancing & NAT

Software

• Linux 64-bit, Linux host driver (FM10000) that is DPDK compatible

Supported Media

• QSFP28 ports support Copper Direct Attach 100GBASE-CR4 and 40GBASE-CR4 passive cable; including breakout cables

• Intel-branded 100GBASE-SR4 QSFP28 optical modules and 40GBASE-SR4 QSFP+ optical modules

Dimensions

W x L: 2.713" x 6.6" (6.89cm x 16.76cm)
