Key Features

• HA, High flexibility, VM, Communication

• Application and data serving

• Appliance Server

1. Single Socket H4 (LGA 1151) supports, Intel® Xeon® processor E-2100, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®

2. Intel® C246 chipset

3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots

4. 1 PCI-E 3.0 x16 or 2 PCI-E x8,

    1 PCI-E 3.0 x4 (in x8) slot

5. 4 Hot-swap 3.5" drive bays

6. M.2 Interface:

    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4

    M.2 Form Factor: 2260/2280/22110

    M.2 Key: M-Key

7. 2 GbE LAN ports, 1 dedicated IPMI LAN

8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)

9. 1 VGA, 2 COM, 1 TPM header

10. 500W High efficiency (96%) Redundant PSU, 54.5mm wide; Platinum Level

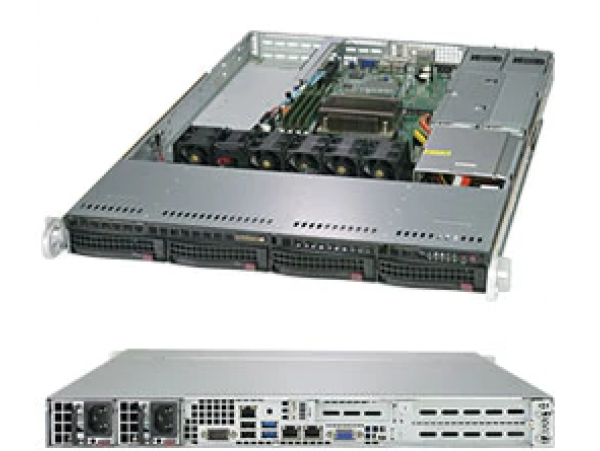

 SYS-5019C-WR Datasheet
