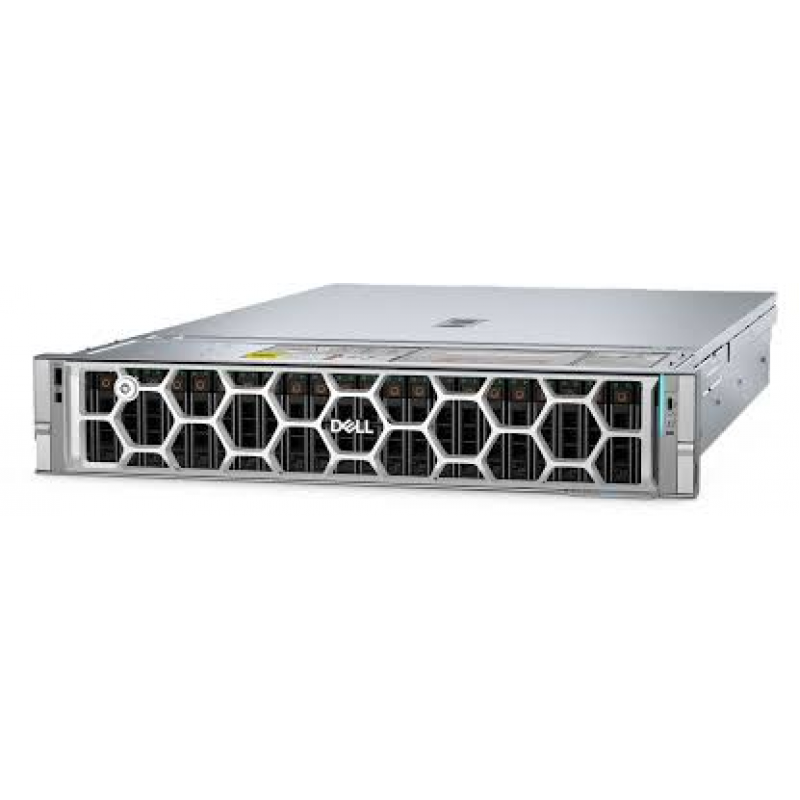

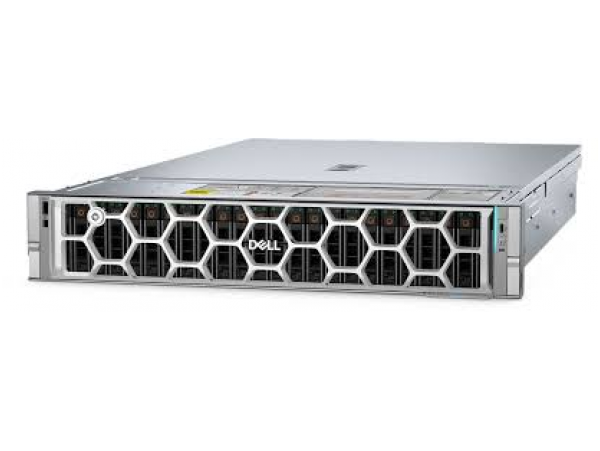

Máy chủ Dell PowerEdge R7725

Specification

Details

Processor

Two 5th Gen AMD EPYC 9005 processors, up to 192 Zen5/Zen5c cores per processor

Operating System

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, VMware ESXi

Chipset

AMD chipset

Accelerators

Up to two 75 W single-width GPUs

Memory

DIMM Speed: Up to 6000 MT/s

Memory Type: RDIMM

Slots: 24 DDR5 DIMM

Max RAM: 2.3 TB

Storage

Front Bays: Up to 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch Universal SmartFlow NVMe, max 184.24 TB

Up to 16 x EDSFF E3.S Gen5 NVMe, max 245.8 TB

Storage Controllers

Internal: PERC H965i

Boot: BOSS-N1 DC-MHS

Security

Cryptographically signed firmware, Secure Boot, TPM 2.0 FIPS certified, System Lockdown, Secure Erase

Management

iDRAC10, iDRAC RESTful API with Redfish, OpenManage Enterprise (OME), NativeEdge Endpoint and Orchestrator

Power Supplies

1500W Titanium 100-240 VAC or 240 HVDC, hot-swap redundant

Ports

Front: 1 x USB 2.0 Type-A, 1 x USB 2.0 Type-C, 1 x MiniDisplay port

Rear: 1 x BMC Ethernet, 2 x USB 3.1 Type-A, 1 x VGA

Internal: 1 x USB 3.0

Slots

Up to 4 PCIe Gen5 x16 slots, OCP network options with 2 x OCP NIC 3.0 cards

Form Factor

2U rack server

Dimensions & Weight

Height: 86.80 mm (3.42 in)

Width: 482.00 mm (18.98 in)

Depth: 802.40 mm (31.59 in) with bezel

Max Weight: 28.74 kg (63.36 lb)

Rack Support

ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks

Recommended Support

Dell ProSupport Plus or Dell ProSupport for critical systems; consulting and deployment services available.
