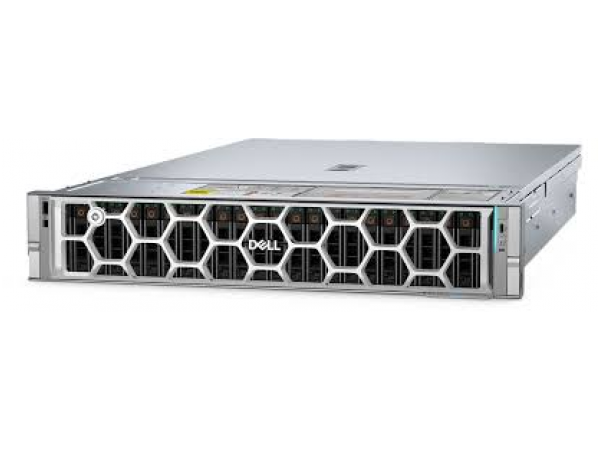

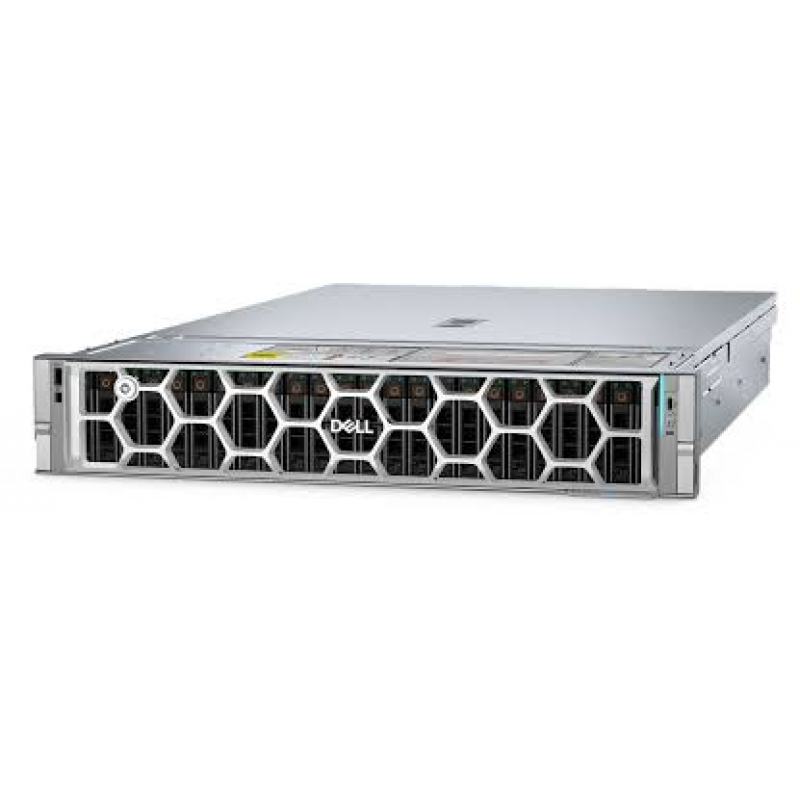

Máy chủ Dell PowerEdge R7715

Feature

Technical Specifications

Processor

5th Gen AMD EPYC 9005, up to 160 cores per processor

Memory

24 DDR5 DIMM slots, up to 6 TB, speeds up to 5200 MT/s, ECC only

Storage Controllers

RAID: PERC H365i, H965i, H975i; Boot: BOSS-N1 DC-MHS

Chassis

• 16 x 2.5-inch SAS/SATA SSD + 8 x U.2 NVMe drives

• 16 x 2.5-inch Universal SSD drives

• 16 x EDSFF E3.S Gen5 NVMe drives

Power Supplies

Platinum 800W, 1100W; Titanium 800W–3200W; Telco: 1400W -48VDC

Cooling Options

Air cooling, Direct Liquid Cooling (DLC)

Fans

Up to six hot-plug fans

Dimensions

Height: 86.8 mm, Width: 482.0 mm, Depth: 802.4 mm with bezel

Form Factor

2U rack server

Embedded Management

iDRAC 10, iDRAC Direct, Redfish API, Racadm CLI

Bezel

Optional metal bezel

Security

Cryptographically signed firmware, Secure Boot, TPM 2.0 FIPS, Silicon Root of Trust, Secure Erase

GPU Options

Up to 3x 400W DW, 6x 75W SW

Ports

Front: 1x USB 2.0 Type-A, 1x USB 2.0 Type-C, 1x Mini DisplayPort

Rear: 1x 1Gb BMC Ethernet, 2x USB 3.1 Type-A, 1x VGA

PCIe

Up to eight PCIe slots, Gen5

OCP Network Options

2 x OCP NIC 3.0 cards, 1GbE, 10GbE, 25GbE, 100GbE, 400GbE

Operating Systems

Ubuntu LTS, Windows Server, RedHat, VMware ESXi
