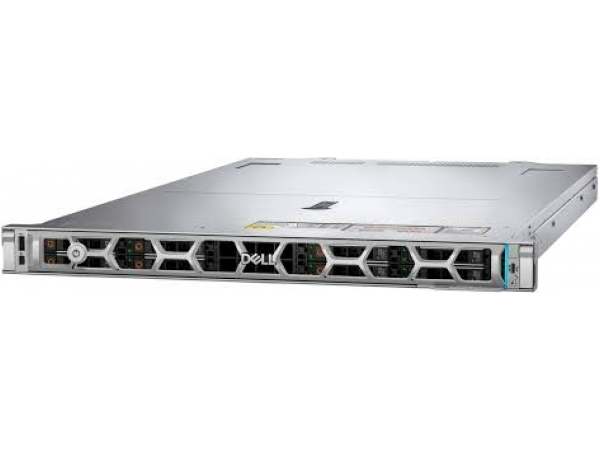

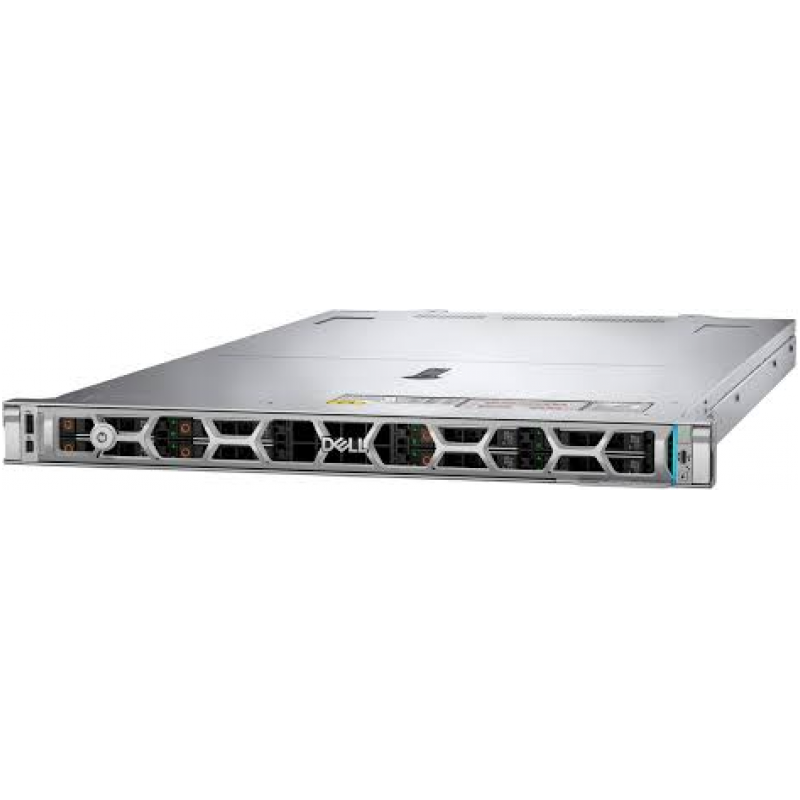

Máy chủ Dell PowerEdge R6725

Feature

Technical Specifications

Processor

Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor

Memory

•   24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s

•   Supports registered ECC DDR5 DIMMs only

Storage controllers

•   Internal Controllers (RAID): PERC H365i, H965i, H975i

•   Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)

•   External HBAs (non-RAID): HBA465e

Drive Bays

Front bays:

•   4 x 3.5-inch SAS/SATA

•   8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA

•   10 x 2.5-inch with 4 x Universal

•   8 x EDSFF E3.S / 16 x EDSFF E3.S / 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S

Power Supplies

•   Platinum: 800W, 1100W

•   Titanium: 800W, 1100W, 1500W, 1500W 277VAC & HVDC*, 1800W*

•   Telco: 1400 W -48VDC

Cooling Options

Air cooling, Direct Liquid Cooling (DLC)

Fans

•   Up to four sets (dual fan module) hot plug fans

Dimensions

•   Height – 42.8 mm (1.68 inches)

•   Width – 482 mm (18.97 inches)

•   Depth – 816.921 mm (32.16 inches) with bezel

– 815.141 mm (32.09 inches) without bezel

Embedded Management

•   iDRAC10

•   iDRAC Direct

•   iDRAC RESTful API with Redfish

•   Racadm CLI

•   Quick Sync 2 wireless module

GPU Options

Up to 3 x 75 W SW

Ports

Front Ports

•   1 x USB 2.0 Type-A (optional LCP KVM)

•   1 x USB 2.0 Type-C (HOST/BMC Direct)

•   1 x Mini DisplayPort (optional LCP KVM)

Rear Ports

•   1 x 1 Gb dedicated BMC Ethernet port

•   2 x USB 3.1 Type-A

•   1 x VGA

Internal Port

1 x USB 3.1 Type-A

Form Factor

1U rack server
