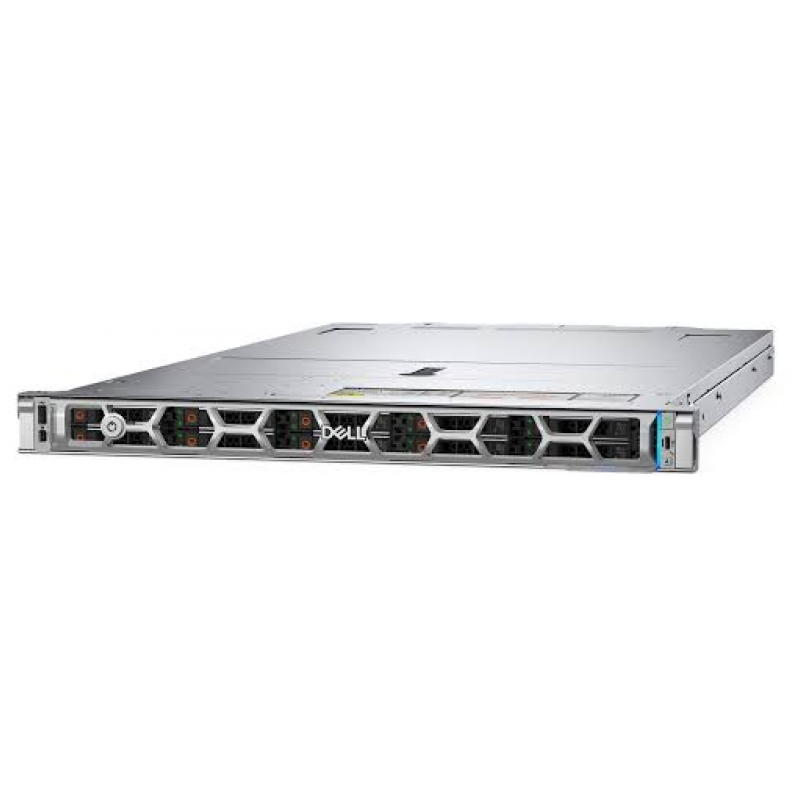

Máy chủ Dell PowerEdge R670 - 8x2.5" (Basic)
- Nhà sản xuất: Dell EMC
- Mã sản phẩm TM10013
- Tình trạng: Vui lòng gọi
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Máy chủ Dell PowerEdge R670 - 8x2.5" (Basic)
| Feature | Technical Specifications |
|---|---|
| Processor | Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i |
| Front Bays | • No Backplane configuration • Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration • Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB • Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB • Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe RAID max 491.52 TB • 8 x 2.5-inch Universal 491.52 TB • Up to 10 x 2.5 inch SATA max 38.4 TB • Up to 2 x EDSFF E3.S Gen5 NVMe in the rear max 122.88 TB |
| Hot swap Power Supplies | • 1500 W Titanium 100—240 VAC or 240 VDC • 1100 W Titanium 100—240 VAC or 240 VDC • 800 W Titanium 100—240 VAC or 240 VDC • 1100 W Platinum 100—240 VAC or 240 VDC • 800 W Platinum 100—240 VAC or 240 VDC • 1800 W HLAC Titanium 200—240 VAC or 240 VDC* • 1500 W 277 VAC or 336 VDC* • 1400 W LVDC -48 — -60 VDC |
| Cooling Options | • Air cooling and Direct Liquid Cooling • Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
| Fans | • High performance Silver (HPR SLVR) or Standard (STD) fans • Up to 4 sets (dual fan module) hot swappable fans |
| Dimensions and Weight | Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Weight – 20.42 kg (45.02 pounds) Depth (for rear I/O configuration): 816.92 mm (32.20 inches) with bezel / 815.14 mm (32.09 inches) without bezel Depth (for front I/O configuration): 829.44 mm (32.66 inches) without bezel Note: The front I/O configuration does not support the bezel. |
| Form Factor | 1U rack server |
| Embedded Management | • iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) • Quick Sync 2 wireless module • NativeEdge Endpoint • NativeEdge Orchestrator |
| Bezel | Optional security bezel |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
| Network options | 2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE* Slot 31 1 x 16 OCP 3.0 on front riser Slot 32 1 x 16 OCP 3.0 on front riser Slot 2 1 x 16 OCP 3.0 Slot 5 1 x 8 Gen5 OCP 3.0 or 1 x 16 Gen5 OCP 3.0 |
| BOSS Slots | Slot 34 1 x 4 BOSS Slot 3 1 x 4 BOSS |
| GPU options | Up to 3 x 75 W SW |
| Ports | Front Ports: • 1 x USB 2.0 Type C port • 1 x USB 2.0 Type A port (optional) • 1 x Mini-DisplayPort (optional) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated ethernet port for iDRAC management Rear Ports: • 1 x Dedicated ethernet port for iDRAC management • 1 x VGA • 2 x USB 3.1 Type A ports Internal Ports: • 1 x USB 3.1 Type A port |
| PCIe | • Up to 2 x 16 Gen5 PCIe slots • Slot 31 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser • Slot 32 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser • Up to 3 x 16 or 2 x 8 Gen5 PCIe slots • Slot 1 1 x 16 Full Height - Half Length or Full Height - Full Length or 3 x 16 or 1 x 8 Low Profile - Half Length • Slot 2 1 x 16 or 1 x 8 Low Profile - Half Length or 1 x 16 OCP 3.0 • Slot 4 1 x 16 Full Height - Half Length or 1 x 16 Low Profile - Half Length |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V (P-Core only) • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
