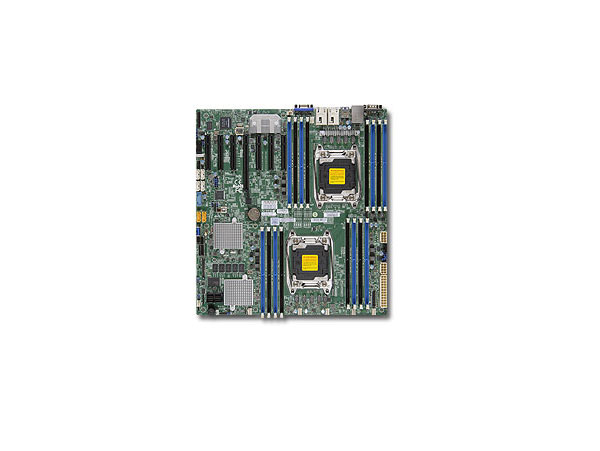

Mainboard Supermicro MBD-X10DRH-C
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM181 / MBD-X10DRH-C-O
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Mainboard Supermicro MBD-X10DRH-C
Key Features
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
4. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
5. Intel® i350 Dual port GbE LAN
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
7. 8x SAS3 (12Gbps) ports w/ LSI 3108 controller (2GB cache); RAID 0, 1, 5, 6,
10, 50, 60
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 5x USB 3.0 and 4x USB 2.0 ports
Specifications
Product SKUs |
|
| MBD-X10DRH-C -O | X10DRH-C (Retail Pack) |
| MBD-X10DRH-C -B | X10DRH-C (Bulk Pack) |
Physical Stats |
|
| Form Factor | E-ATX |
| Dimensions | 12" x 13" (30.5cm x 33.2cm) |
Processor/Cache |
|
| CPU | Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
System Memory |
|
| Memory Capacity | Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots |
| Memory Type | 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SAS |
LSI 3108 SAS3
(12Gbps) controller; 2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. |
| IPMI |
Support for
Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers |
Intel® i350 Dual Port
Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | ASPEED AST2400 BMC |
Input / Output |
|
| SATA | 10x SATA3 (6Gbps) ports |
| SAS | 8x SAS3 (12Gbps) ports |
| LAN |
2x RJ45 Gigabit
Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB |
5x USB 3.0 ports (2
rear + 2 via header + 1 Type A) 4x USB 2.0 ports (2 rear + 2 via header) |
| Video | 1x VGA port |
| Serial Port / Header |
2x Fast UART 16550
serial 2x COM Ports (1 rear, 1 header) |
| DOM | 2x SuperDOM (Disk on Module) ports |
| TPM | 1x TPM 1.2 20-pin Header |
Expansion Slots |
|
| PCI-Express |
1x PCI-E 3.0 x16 6x PCI-E 3.0 x8 |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
Management |
|
| Software |
Intel® Node Manager
3.0 IPMI 2.0 SPM SUM SuperDoctor® 5 NMI Watch Dog |
| Power Configurations |
ACPI / APM Power
Management Power-on mode for AC power recovery |
Note: For optimized or compatible chassis,
additional parts may be repuired, please check with Supermicro sales rep
