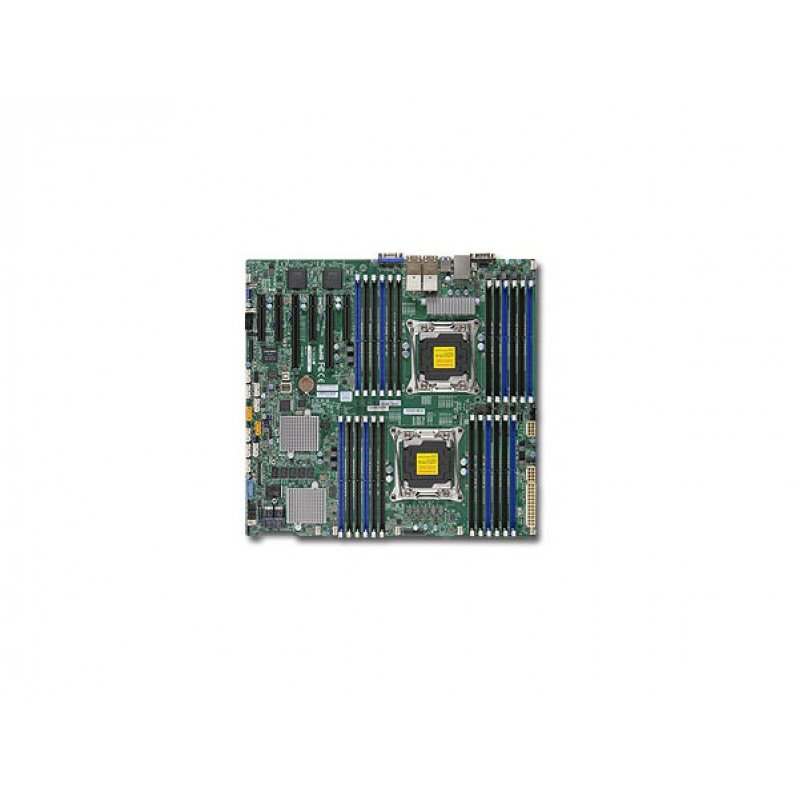

Mainboard Supermicro MBD-X10DRC-LN4+
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM211 / MBD-X10DRC-LN4+-O
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Mainboard Supermicro MBD-X10DRC-LN4+
Key Features
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
4. 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel® i350 GbE
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
7. 8x SAS3 (12Gbps) ports w/ LSI 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60;
SuperCap option support
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 3x USB 3.0 (2 rear, 1 Type A)
Specifications
Product SKUs |
|
| MBD-X10DRC-LN4+ -B | X10DRC-LN4+ (Bulk Pack) |
| MBD-X10DRC-LN4+ -P | X10DRC-LN4+ (Retail Pack) |
Physical Stats |
|
| Form Factor | Enhanced Extended ATX |
| Dimensions | 13.68" x 13" (34.74cm x 33cm) |
Processor/Cache |
|
| CPU | Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
System Memory |
|
| Memory Capacity | Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots |
| Memory Type | 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| SAS |
LSI 3108 SAS3
(12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60 2GB Cache with optional SuperCap backup module Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI |
Support for
Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers |
Intel® i350 Quad Port
Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video |
ASPEED AST2400 BMC Video resolution up to 1920x1200 @ 60Hz 32BPP |
Input / Output |
|
| SATA | 10x SATA3 (6Gbps) ports |
| SAS |
8x SAS3 (12Gbps)
ports SuperCap option support |
| LAN |
4x RJ45 Gigabit
Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 3x USB 3.0 ports (2 rear + 1 Type A) |
| Video | 1x VGA port |
| Serial Port / Header |
2x Fast UART 16550
serial 2x COM Ports (1 rear, 1 header) |
| DOM | 2x SuperDOM (Disk on Module) ports |
| TPM | 1x TPM 1.2 20-pin Header |
Expansion Slots |
|
| PCI-Express |
2 PCI-E 3.0 x16 3 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8) |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
Management |
|
| Software |
Intel® Node Manager
3.0 NMI SPM SUM SuperDoctor® 5 Watch Dog |
| Power Configurations |
ACPI Power Management Power-on mode for AC power recovery |
Note: For optimized or compatible chassis,
additional parts may be repuired, please check with Supermicro sales rep
