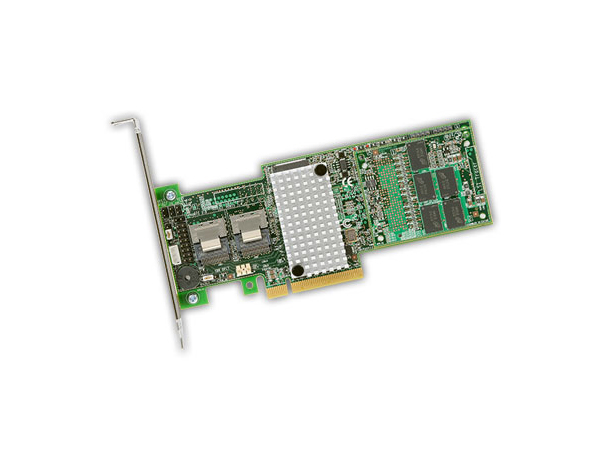

LSI MegaRAID SAS 9270-8i
- Mã sản phẩm TM810
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm LSI MegaRAID SAS 9270-8i
LSI MegaRAID SAS 9270-8i
Datacenter, cloud and high-performance computing environments need storage
capacity to handle massive volumes of data, and must provide data protection and
performance to meet the needs of applications and end users. The MegaRAID® SAS
9270-8i 6Gb/s SAS and SATA RAID Controller Card delivers the performance and
RAID data protection for a wide range of Server storage applications.
- Connect up to 128 SATA or SAS drives with eight internal 6Gb/s SATA+SAS
ports
- Fit into rack-mounted servers with low-profile form factor and
top-mounted SAS connectors
- Bandwidth to support critical applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID
levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional heat-tolerant
battery backup
| Product | Ordering Part # | What's in the box |
| MegaRAID SAS 9270-8i | LSI00326 | MegaRAID SAS 9270‐8i, QIG, LP bracket |
| Specifications | Value | |
| RAID-on-Chip Controller | LSISAS2208 Dual-Core RAID on Chip (ROC) | |
| Cache Protection | LSIiBBU09, optional intelligent battery backup module that remotely connects to the adapter | |
| RAID Management Software | MegaRAID
Management Suite™ MegaRAID Storage Manager™ MegaCLI (command-line interface) WebBIOS |
|
| Physical Dimensions | MD2 Low profile (6.6" x 2.536") | |
| Host Bus Type | x8 lane PCI Express® 3.0 | |
| Cache Memory | 1GB 1333MHz DDRIII SDRAM | |
| Internal Ports | 8 | |
| Data Transfer Rates | Up to 6Gb/s per port | |
| Devices Supported | Up to 128 SAS and/or SATA devices | |
| Internal Connectors | 2 Mini-SAS SFF8087 (top mount) | |
| MTBF | 766,841 hours | |
| Operating Temperature | Maximum ambient: Controller Card: 60°C (55°C with optional LSIiBBU09) | |
| Operating Voltage | +3.3V | |
| Operating Systems | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support | |
| Regulatory Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick | |
