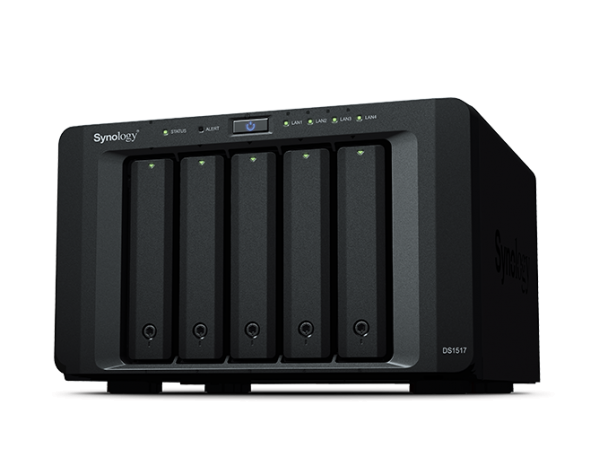

Thiết bị lưu trữ Synology DiskStation DS1517
- Nhà sản xuất: Synology
- Mã sản phẩm TM5458
- Tình trạng: Đặt trước
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Thiết bị lưu trữ Synology DiskStation DS1517
Hardware Specifications
| CPU Model | Annapurna Labs Alpine AL-314 |
| CPU Architecture | 32-bit |
| CPU Frequency | Quad Core 1.7 GHz |
| Hardware Encryption Engine | |
| Memory | |
| System Memory | 2 GB DDR3L |
| Storage | |
| Drive Bays | 5 |
| Maximum Drive Bays with Expansion Unit | 15 |
| Compatible Drive Type*(See all supported drives) |
|
| Maximum Internal Raw Capacity | 60 TB (12 TB drive x 5) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 180 TB (60 TB + 12 TB drive x 10) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| Notes | "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. |
| External Ports | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
| eSATA Port | 2 |
| File System | |
| Internal Drives | EXT4 |
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
| Appearance | |
| Size (Height x Width x Depth) | 157 mm x 248 mm x 233 mm |
| Weight | 4.15 kg |
| Others | |
| System Fan | 80 mm x 80 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Power Recovery | |
| Noise Level* | 22.4 dB(A) |
| Scheduled Power On/Off | |
| Wake on LAN/WAN | |
| Power Supply Unit / Adapter | 200W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 39.5 W (Access) 18.2 W (HDD Hibernation) |
| British Thermal Unit | 134.78 BTU/hr (Access) 62.10 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
