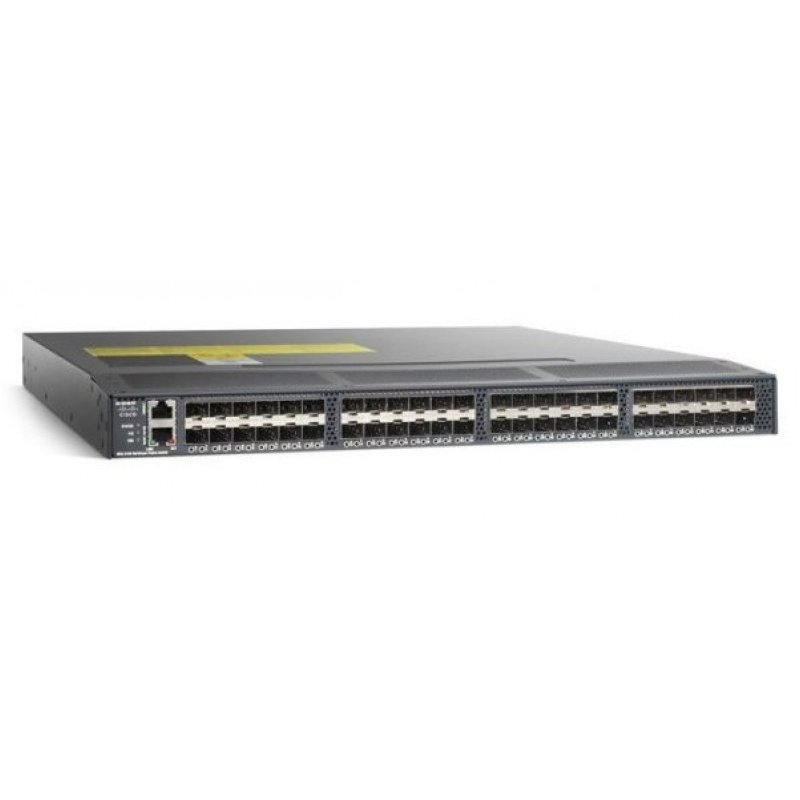

Switch Cisco DS-C9148D-8G16P-K9 48-Port Fabric

Cisco DS 9148 48-Port Multilayer Fabric Switch with 16 8-Gbps active ports and 16 8-Gbps SW optics
Dual Power Supplies
Power Cords and Fans
VSANs
PortChannels and Cisco DCNM for SAN Essentials Edition
Includes generic Cisco Accessory kit.

• • Subtype Fibre Channel
  • Max Transfer Distance 2821 ft
  • Fibre Channel FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-IP, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5
  • Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), DH-CHAP
  • Remote Management Protocol RMON, SNMP 3, SSH-2
  • Status Indicators Port status, power, status
  • Device Type Switch - 16 ports
  • Enclosure Type Desktop - 1U
  • Encryption Algorithm AES
  • Ports 16 x 8Gb Fibre Channel + 32 x SFP+ Ports on Demand
  • Features Hot swap module replacement, auto-sensing per device, trunking, ISL support, Syslog support, manageable, LUN zoning, Access Control List (ACL) support, Quality of Service (QoS)
  • Interfaces Fibre Channel
• MainSpecs
  • Subtype Fibre Channel
  • Power Redundancy Yes
  • Max Transfer Distance 2821 ft
  • Product Description Cisco MDS 9148 Multilayer Fabric Switch - switch - 16 ports - desktop
  • Dimensions (WxDxH) 17.2 in x 18.9 in x 1.8 in
  • Weight 22 lbs
  • Features Hot swap module replacement, auto-sensing per device, trunking, ISL support, Syslog support, manageable, LUN zoning, Access Control List (ACL) support, Quality of Service (QoS)
  • Power AC 120/230 V ( 50/60 Hz )
  • Device Type Switch - 16 ports
  • Ports 16 x 8Gb Fibre Channel + 32 x SFP+ Ports on Demand
  • Remote Management Protocol RMON, SNMP 3, SSH-2
  • Enclosure Type Desktop - 1U
  • Interfaces Fibre Channel
• Environmental Parameters
  • Min Operating Temperature 32 °F
  • Max Operating Temperature 104 °F
  • Humidity Range Operating 10 - 90%
• Power
  • Power Redundancy Yes
  • Power Redundancy Scheme 1+1
  • Installed Qty 2 (installed) / 2 (max)
  • Power Consumption Operational 300 Watt
  • Voltage Required AC 120/230 V ( 50/60 Hz )
  • Power Device Power supply - hot-plug / redundant - plug-in module
• Software / System Requirements
  • Software Included Drivers & Utilities, Cisco Fabric Manager, Cisco MDS 9000 NX-OS 5.0
• Miscellaneous
  • Depth 18.9 in
  • Height 1.8 in
  • Weight 22 lbs
  • Width 17.2 in
  • Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FCC Part 15 A, NEBS, CSA C22.2 No. 60950-1
• Expansion / Connectivity
  • Interfaces 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 1 x console - RJ-45 - management ¦ 16 x 8Gb Fibre Channel (SW) - LC x 2
• Dimensions & Weight
  • Weight 22 lbs
  • Height 1.8 in
  • Depth 18.9 in
  • Width 17.2 in
