Key Features

• Compute Intensive Application

• HPC, Data Center, Enterprise Server
• Hyperscale / Hyperconverged

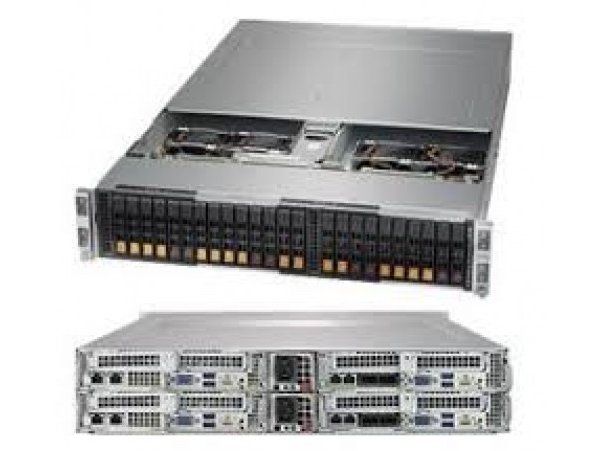

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual AMD EPYC™ 7000-Series   Processors

2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots

3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM  card support (flexible networking)

    Note: must bundle with Network card

4. IPMI 2.0 + KVM with dedicated LAN

5. 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays

    M.2 Interface: 1 SATA/PCI-E 3.0 x4

    M.2 Form Factor: 2280, 22110

    M.2 Key: M-key

6. SAS3 support via Broadcom 3008; IT mode

7. Video via Aspeed AST2500 BMC

8. 2200W Redundant Power Supplies Titanium Level (96%)

(Full redundancy based on configuration and application load)

Note: Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).

• Superserver AS-2123BT-HNC0R Datasheet
