CSE-946ED-R2KJBOD

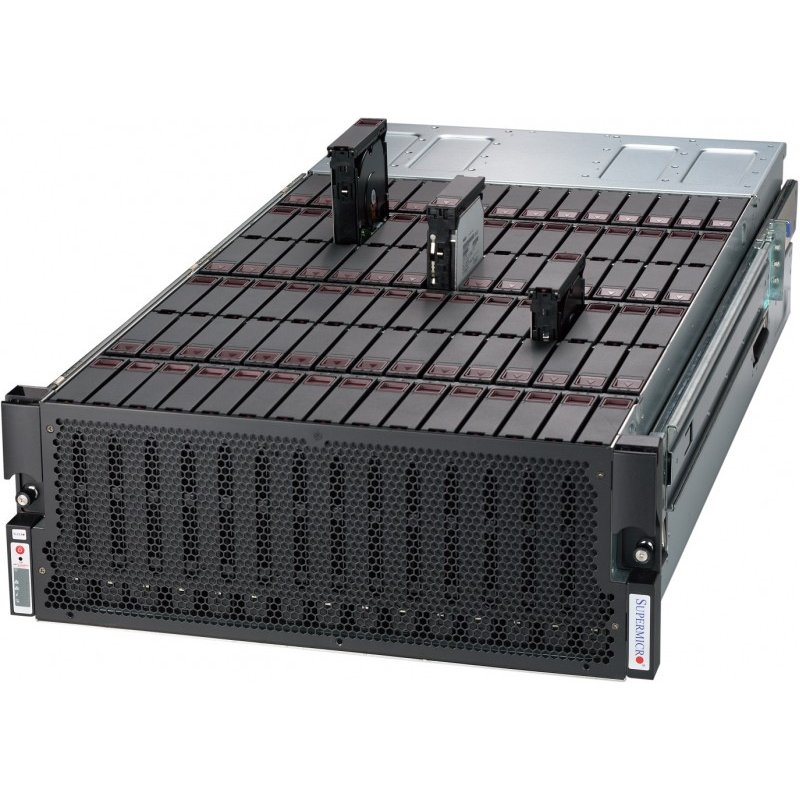

SuperChassis 946ED-R2KJBOD (Black)

Form Factor

4U chassis

Processor Support

N/A

Dimensions

Height

7" (178mm)

Width

17.6" (447mm)

Depth

35.66" (906mm)

Packaging

31.49'' (W) x 30.12''(H) 45.28'' (L)

Gross Weight

225 lb (102.06 kg)

Available Colors

Black

Drive Bays

JBOD Chassis

90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
SAS HDD only recommended

Expander Module

Dual hot-swappable SAS3 expander module

Front Panel

Buttons

Power On/Off button
Unit Identification (UID) button

LEDs

2 Network Activity LEDs
Power Fail LED
System Information LED
Unit Identification (UID) LED

System Cooling

Fans

5 x 80mm heavy duty fans with PWM fan speed control

Power Supply with Digital Switching Control

1U 1000W Redundant Single Output Power Supply Titanium Level

AC Input

100-127 V, 50-60 Hz
200-240 V, 50-60 Hz

+12V

Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)

12V SB

Max: 2.1A

Certification

Titanium Level[ Test Report ]

Standard Parts List

Part Number

Qty

Description

Chassis

CSE-946ED-R2KJBOD

1

4U Chassis (Black)

Power Supply

PWS-1K04A-1R

4

1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)

Power Distributor

PDB-PT946-S616

1

12V 25pair connector input support 4pcs power supplies redundancy with special wires 12V/345A output

Fan(1)

FAN-0161L4

5

SC946ED (90-Bay) Chassis Cooling Fan

Drive Tray(s)

MCP-220-94601-0N

90

SC946ED 3.5\" tool-less HDD tray

Mounting Rails

MCP-290-00129-0N

1

cable arm for SC946

Mounting Rails

MCP-290-00124-0N

1

SC946ED rail set

Optional Parts List

Part Number

Qty

Description

Cable

CBL-SAST-0677

---

3m external Mini SAS HD to external mini SAS HD

Cable

CBL-SAST-0690

---

2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
