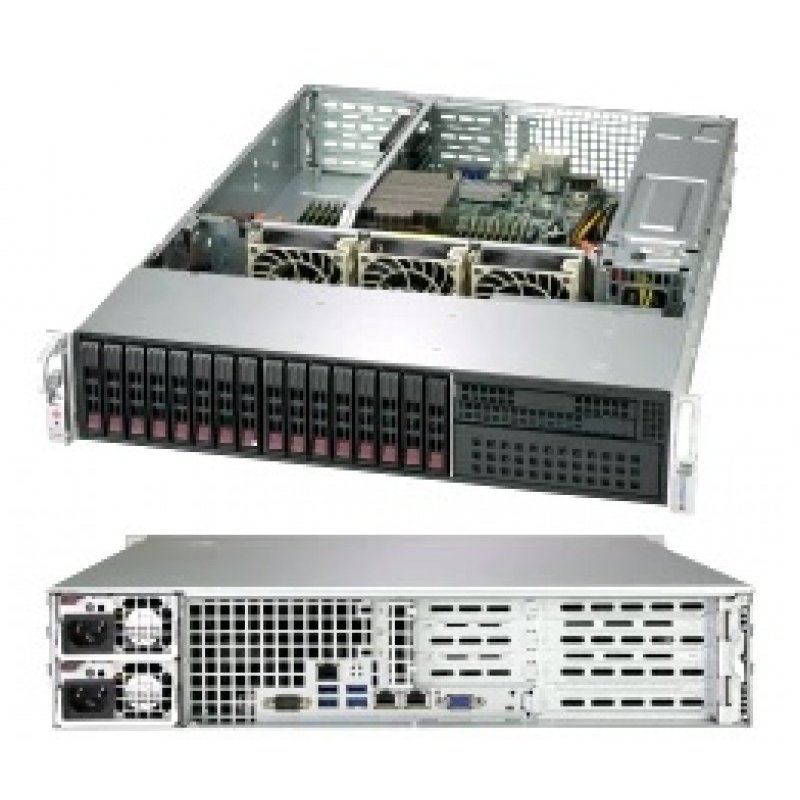

Máy Chủ SuperServer AS -2113S-WTRT

Nhà sản xuất: Supermicro
Mã sản phẩm/Part No. TM6844 / AS -2113S-WTRT
Tình trạng: Liên hệ đặt hàng

Giá bán: Call

Bảo hành 3 năm máy bộ Supermicro

Tư vấn mua hàng So sánh

Không muốn mua? Bạn có thể THUÊ máy chủ này!
Vui lòng liên hệ NV KD để biết chi tiết.

Thông tin sản phẩm Máy Chủ SuperServer AS -2113S-WTRT

Key Features

• Backup Storage

• Web or Database Servers

• Compact Network Appliance

Single AMD EPYC™ 7000-series processor supported (Socket SP3)
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
1 PCI-E 3.0 x16 (FH/HL) slot, 2 PCI-E 3.0 x8 (FH/HL) slots, 2 PCI-E 3.0 x8 (LP) slots
16 hot-swap 2.5" SATA3 drive bays, optional 6 U.2 NVMe drive support with additional cables, optional slim DVD-ROM drive
IPMI 2.0 + KVM with dedicated LAN support
2x 10GBase-T LAN ports via Broadcom BCM57416
1200W Titanium level Redundant Power Supplies with PMBus

Product SKUs

AS -2113S-WTRT

A+ Server 2113S-WTRT

Motherboard

H11SSW-NT


Processor/Chipset

CPU	Single AMD EPYC™ 7000-series Processor Socket SP3
Cores	Up to 32 Cores
Chipset	System on Chip (SoC)


System Memory

Memory Capacity	16 DIMM slots Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Broadcom BCM57416 Controller
VGA	ASPEED AST2500 BMC


Expansion Slots

PCI Express	1 PCI-E 3.0 x16 (FH/HL) slot 2 PCI-E 3.0 x8 (FH/HL) slots 2 PCI-E 3.0 x8 (LP) slots
M.2	Interface: PCI-E 3.0 x4 (NVMe based) Form Factor: 2280, 22110 Key: Onboard M-key Number of M.2: Dual


Input / Output

NVMe	Up to 6 U.2 NVMe support via additional cables
SATA	16 SATA3 (6 Gbps) ports
LAN	2x 10GbBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (4 rear + 1 Type A) 2 USB 2.0 ports (front) via optional tray
VGA	1 VGA port
Others	1 COM port 2 SATA DOM power connectors TPM 1.2 header


System BIOS

BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1

Chassis

Form Factor	2U
Model	CSE-213AC8-R1K23WB


Dimensions

Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	24.8" (630mm)
Weight	Net Weight: 34 lbs (15.42 kg) Gross Weight: 59 lbs (26.76 kg)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED /UID LED


Drive Bays

Hot-swap	16 hot-swap 2.5" SATA3 drive bays Optional 6 U.2 NVMe drive support with additional cables


Peripheral Drives

Optional	Optional slim DVD-ROM drive 2 USB 2.0 ports 1 COM port tray


Backplane

Hybrid Backplane	Supports up to 8x 2.5" SAS3/SATA3 HDD/SSD and 6x SAS3/SATA3/NVMe Storage Devices


System Cooling

Fans	3 heavy-duty PWM fans with optimal fan speed control
Air Shroud	1 Air Shroud


Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus
Total Output Power	1000W/1200W
Dimension(W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only)
+12V	Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	UL/cUL/CB/BSMI/CE/CCCTitanium Level
