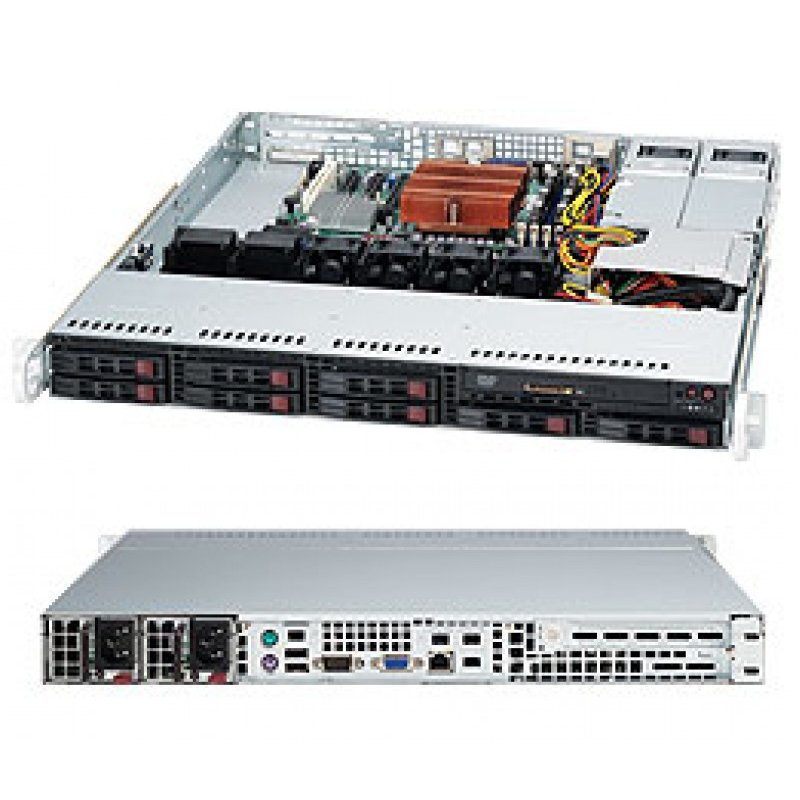

Thông tin sản phẩm Máy chủ Supermicro USA 1U CSE-113MTQ-R400CB E3-1230 v3
Key Features:
Processor: Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.3 GHz)
Memory: 1x 8GB DDR3 ECC
1600MHz UDIMMs
Network Controller:
Dual Gigabit Ethernet LAN ports
Raid: 2 SATA3 (6Gbps) w/ RAID 0, 1; 4 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
Storages: Support 8x 2.5" Hot-swap SAS2 (6Gb/s) / SATA
Power: 400W Redundant power supplies
Form Factor: Rack 1U
SPECIFICATIONS DETAIL:
Product SKUs : Supermicro USA Server 1U CSE-113MTQ-R400CB E3-1230 v3
Motherboard : X10SLL-S
Processor/Cache.
CPU : Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen.
Core i3, Pentium, Celeron processors
System Memory.
Memory Capacity : 2x 240-pin DDR3 DIMM sockets. Supports up to 16 GB DDR3 ECC
Un-Buffered memory (UDIMM)
DIMM Sizes : 8GB, 4GB, 2GB, 1GB
On-Board Devices.
Chipset : Intel® C222 Express PCH
SATA : SATA3 (6Gbps) w/ RAID 0, 1. SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
Network Controllers : Intel® i217LM + Intel® i210AT Controllers
Graphics : BMC integrated Aspeed AST2400
Input / Output.
SATA : 2x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports
LAN : 2x RJ45 Gigabit Ethernet LAN ports.
USB : 4x USB 2.0 ports (4 rear, 2 via
header)
Video : 1x VGA Connector
Serial Port / Header : 1x COM port (1 header)
DOM: SATA DOM (Disk on Module) power connector support
Expansion Slots.
PCI-Express: 1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 3.0 x8 slot
Power Supply.
400W Redundant power supplies
Drive Bays.
Internal Bay : 8x 2.5" Hot-swap drive bays
Peripheral Drives: Slim DVD-ROM drive (Optional)
Chassis.
Form Factor : 1U Rackmount
Model : CSE-113MTQ-R400CB
Parts List -
(Items Included) |
Description |
Qty |
Motherboard |
X10SLL-S |
1 |
Chassis |
CSE-113MTQ-R400CB
|
1 |
CPU |
E3-1230 v3 |
1 |
Ram |
8GB ECC DDR3 |
1 |
Hdd |
- |
|
Heatsinks |
- |
1 |
DVD |
- |
|
Tray |
Hot-swap 2.5" Hard
Drive Trays |
8 |
Raid Hardware |
- |
|
Power |
400W | 2 |
Mounting Rails |
1U Slide Rails |
1 |
