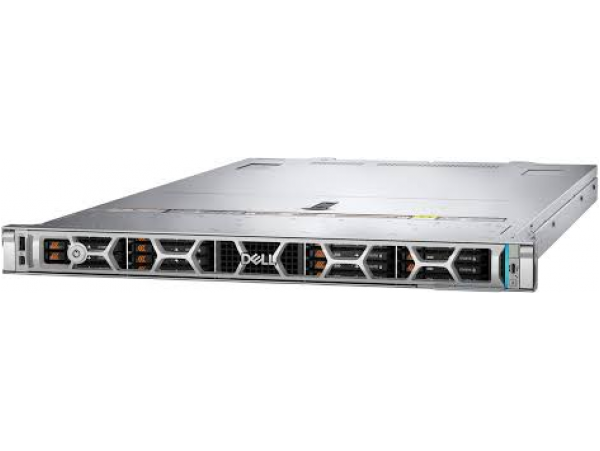

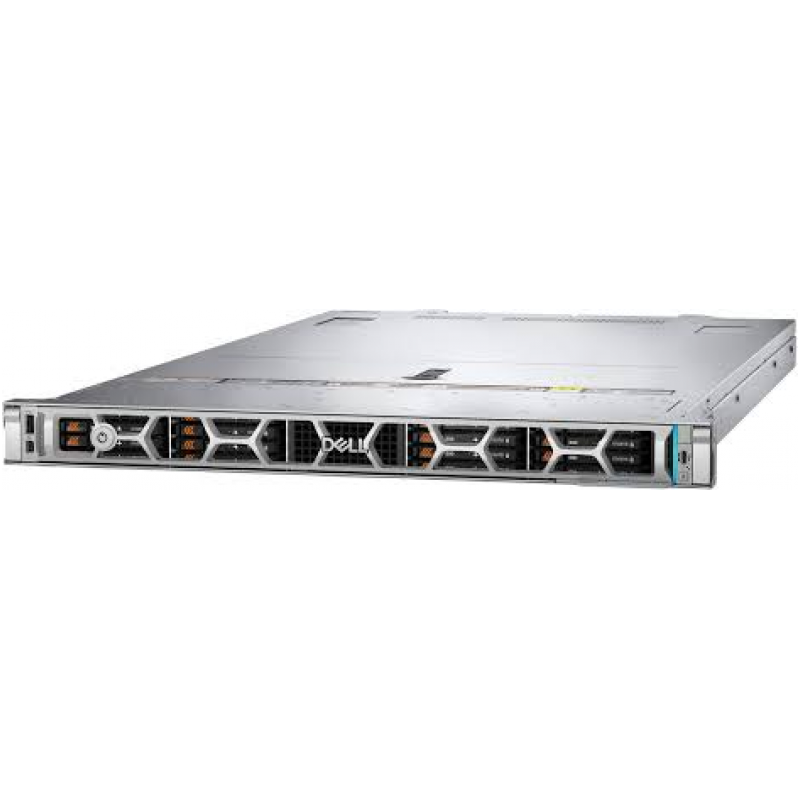

Máy Chủ Dell PowerEdge R6715

Feature

Technical Specifications

Processor

One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor

Memory

•   24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s

•   Supports registered ECC DDR5 DIMMs only

Storage controllers

•   Internal Controllers (RAID): PERC H365i, H965i, H975i

•   Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)

•   External HBAs (non-RAID): HBA465e

Drive Bays

Front bays:

•   4 x 3.5-inch SAS/SATA

•   8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA

•   10 x 2.5-inch with 4 x Universal

•   16 x EDSFF E3.S Gen5 NVMe drives

•   20 x EDSFF E3.S + Rear 2 x EDSFF E3.S

Power Supplies

•   Platinum 800W, 1100W

•   Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC*, 1800W*

•   Telco: 1400W -48VDC

Fans

•   Up to four sets (dual fan module) hot plug fans

GPU Options

Up to 3 x 75W SW

Ports

Front Ports

•   1 x USB 2.0 Type-A (optional LCP KVM)

•   1 x USB 2.0 Type-C (HOST/BMC Direct)

1 x MiniDisplay port (optional LCP KVM)

Rear Ports

•   Two USB 3.1 Type-A

•   1 x VGA

       1 Gb dedicated BMC Ethernet port

Internal Port

1 x USB 3.1 Type-A

PCIe

Up to three PCIe slots (x16 connector)

•   Slot 1 1 x16 Gen5 Full Height or Low Profile

•   Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0

Slot 4: 1 x16 Gen5 Full Height or Low profile

Gen5 PCIe slots

3

OCP network options

•   2 x OCP card 3.0 (optional) and 1GbE, 10GbE, 25GbE,100GbE and 400GbE

•   Slot 2: 1 x16 Gen5 OCP 3.0

Slot 5: 1 x16 Gen5 OCP 3.0

Embedded NIC

1 Gb dedicated BMC Ethernet port

Form Factor

1 U rack server
