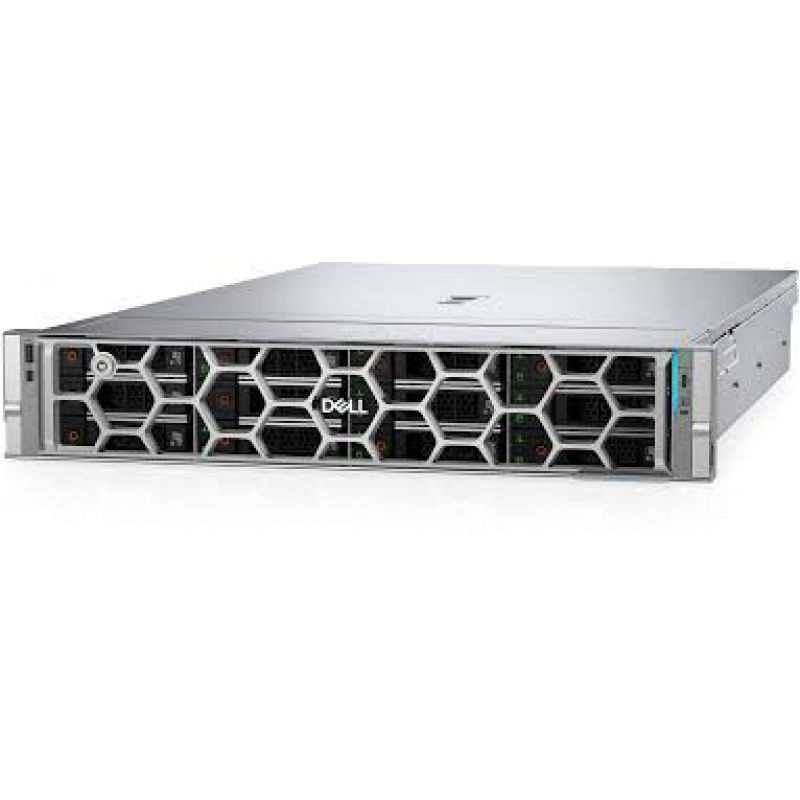

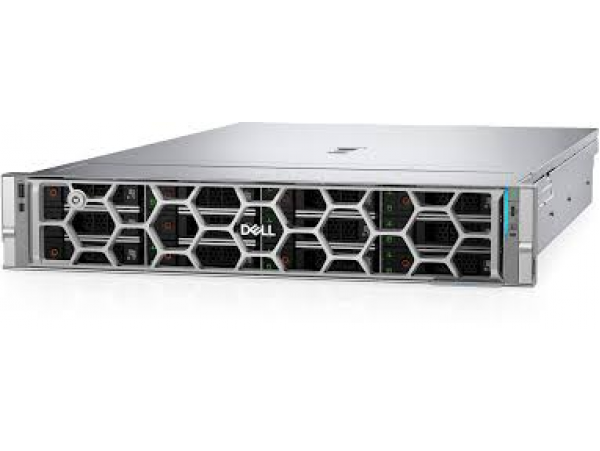

Máy chủ Dell PowerEdge R570

Feature

Technical Specifications

Processor

•   One Intel® Xeon® 6 E-core processor with up to 144 cores

•   One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option

Memory

•   16 DDR5 DIMM slots, speeds up to 6400 MT/s

•   One Intel® Xeon® 6 E-core processor - supports RDIMM 1 TB max

•   One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max

•   Supports registered ECC DDR5 DIMMs only Supports registered ECC DDR5 DIMMs only

Storage controllers

•   Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter

•   Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB

•   External Controllers: PERC H965e, HBA 465e

Drive Bays

Front bays:

•   Up to 12 x 3.5-inch SATA (HDD) RAID max 384 TB*

•   Up to 8 x 2.5-inch NVMe RAID max 491.52 TB

•   Up to 8 x 2.5-inch NVMe max 491.52 TB

•   Up to 8 x 2.5-inch SATA max 30.72 TB

•   Up to 8 x 2.5-inch SATA/Universal max 491.52 TB

•   Up to 16 x 2.5-inch SATA RAID max 61.44 TB

•   Up to 24 x 2.5-inch SATA max 92.16 TB

Rear bays:

Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB

Power Supplies

•   800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1500 W 277 Vac and HVDC Titanium, hot swap redundant*

•   1400 W -48 VDC, hot swap redundant

•   1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*

GPU Options

Up to 3 x 400W DW; Up to 4 x 75W SW

Ports

Front Ports

•   1 x USB 2.0 Type-C (HOST/BMC Direct)

•   1 x USB 2.0 Type-A (optional LCP - Secondary KVM)

•   1 x Mini DisplayPort (optional LCP - Secondary KVM)

•   1 x DB9 Serial (with front I/O configuration)

•   1 x Dedicated BMC Ethernet port (with front I/O configuration)

Rear Ports

•   1 x Dedicated BMC Ethernet port

•   2 x USB 3.1 Type-A

•   1 x VGA

Internal Port

1 x USB 3.1 Type-A

Form Factor

•   2U rack server
