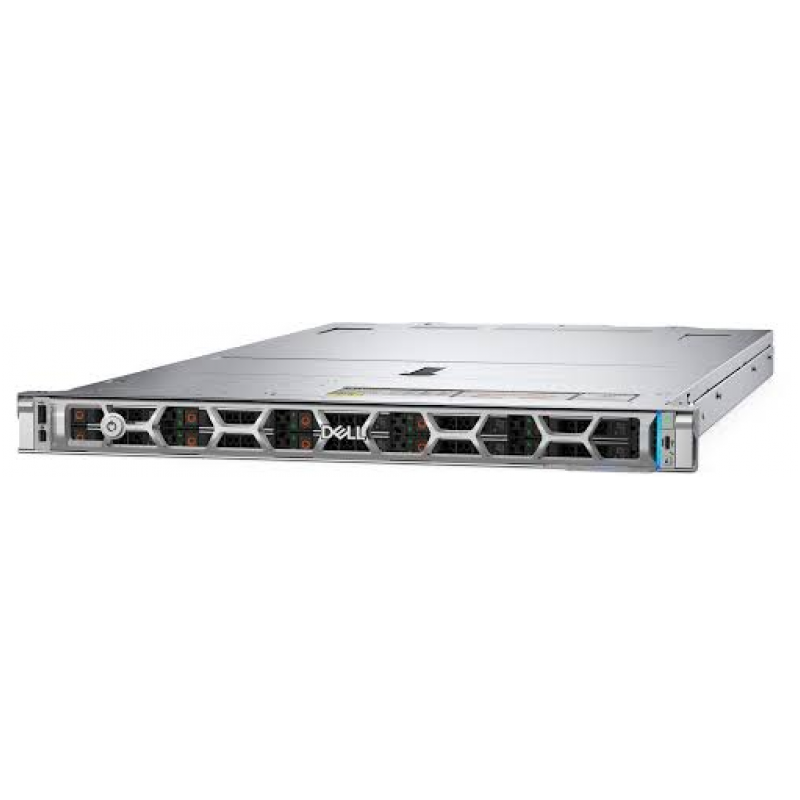

Máy Chủ Dell PowerEdge R470

Feature

Technical Specifications

Processor

One Intel® Xeon 6 E-core processor with up to 144 cores per processor or

One Intel® Xeon 6 P-core processor with up to 86 Cores with R1S option

Memory

•   16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s

•   Intel® Xeon® 6 E-core processor - supports 1 TB max

•   Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports 4 TB max

•   Supports registered ECC DDR5 DIMMs only

Storage controllers

•   Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter

•   External Controllers: HBA465e, H965e(RAID)

•   Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with upto 2 x M.2 NVMe SSDs or USB

Drive Bays

Front bays:

•   Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB

•   Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB

•   Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB

•   Up to 10 x 2.5 - inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB

•   Up to 4 x 3.5 - inch SATA max 128 TB* (only supported with rear 2 x E3.S drives; not supported as standalone front-only configuration)

Rear bays:

•   Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB

Power Supplies

•   800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant

•   1500 W 277 Vac and HVDC Titanium, hot swap redundant*

•   1400W -48v DC Titanium, hot swap redundant

•   1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*

GPU Options

Up to 4 x 75 W SW

Ports

Front Ports

•   1 x USB 2.0 Type - C port

•   1 x USB 2.0 Type A port (optional)

•   1 x Mini-DisplayPort (optional)

•   1 x DB9 Serial (with front I/O configuration)

•   1 x Dedicated BMC Ethernet port (with front I/O configuration)

Rear Ports

•   1 x Dedicated BMC Ethernet port

•   2 x USB 3.1 Type A ports

•   1 x VGA

Internal Ports

1 x USB 3.1 Type A port

Form Factor

1U rack server
