KeyFeatures

1. Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W

Intel® C622 chipset

2. Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots

Expansion slots:

3. 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot

4. 4 SAS3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10

5. 2 10GbE LAN ports

6. 10 SATA3 (6Gbps) via C622

7. I/O: 1 VGA, 2 COM, TPM header

8. 2 SuperDOM with built-in power

9. M.2 NGFF connector

Specifications

Product SKUs

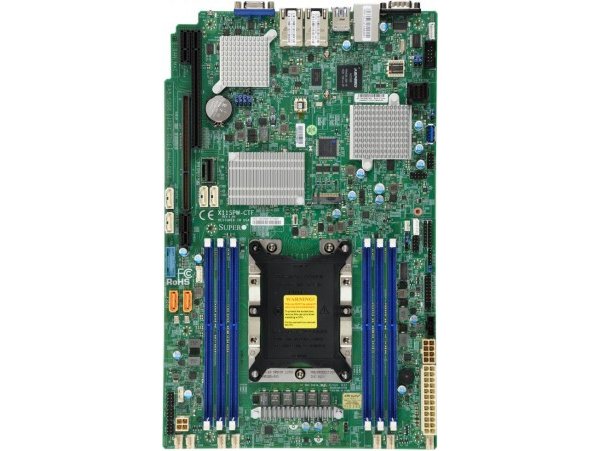

MBD-X11SPW-CTF X11SPW-CTF

Physical Stats

Form Factor Proprietary WIO

Dimensions 8" x 13" (20.32cm x 33.02cm)

Processor/Cache

CPU  Intel® Xeon® Scalable Processors.

Single Socket P (LGA 3647) supported, CPU TDP support 205W

Cores / Cache Up to 28 cores

System Memory

Memory Capacity

6x 288-pin DDR4 DIMM slots

Up to 768GB ECC 3DS LRDIMM

Up to 384GB ECC LRDIMM

Up to 192GB ECC RDIMM

Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM

DIMM Sizes

RDIMM: 4GB, 8GB, 16GB, 32GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 64GB, 128GB

Memory Voltage  1.2V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset Intel® C622

SATA   Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Broadcom® 3008 SW controller for 4 SAS3 (12Gbs) ports; RAID 0,1,10

IPMI  ASPEED AST2500

Network Controllers

Dual LAN with 10GBase-T with Intel® X722 + X557

Graphics

Aspeed AST2500 BMC

Input / Output

SATA  10 SATA3 (6Gbps) ports

LAN  2 RJ45 10GBase-T ports

USB

7 USB 2.0 ports (2 rear + 5 headers),

5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output

1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)

TPM

TPM Header

Expansion Slots

PCI-E

1 PCI-E 3.0 x8 (in x16 slot),

1 PCI-E 3.0 x32 Left Riser Slot

M.2

Interface: PCI-E 3.0 x4 and SATA

Form Factor: 2280, 22110

System BIOS

BIOS Type

AMI UEFI

BIOS Features

ACPI 6.0

RTC (Real Time Clock) Wakeup

SMBIOS 3.0 or later

Management

Software

Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations

ACPI Power Management

Power-on mode for AC power recovery

PC Health Monitoring

Voltage

+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT

FAN

7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control

Temperature

CPU thermal trip support

PECI

LED

CPU / System Overheat LED

UID/Remote UID

Suspend static indicator LED

Other Features

ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL
