Product SKUs

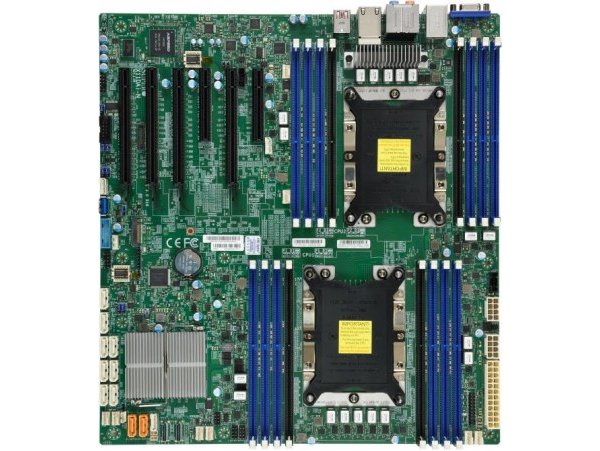

MBD-X11DAi-N

X11DAI-N

Physical Stats

Form Factor

E-ATX

Dimensions

12" x 13" (30.48cm x 33.02cm)

Processor/Cache

CPU

Intel® Xeon® Processor Scalable Family.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s

System Memory

Memory Capacity

Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type

2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel® C621

SATA

Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2500

Network Controllers

Dual LAN with GbE from C621

Audio

7.1 HD Audio

Graphics

Aspeed AST2500 BMC

Input / Output

USB

4 USB 3.0 ports (4 rear via header(s)),
2 USB 3.1 ports (2 rear)

VideoOutput

1 VGA port(s)

Serial Port / Header

1 COM Port (1 header(s)

TPM

1 TPM Header

Others

Thunderbolt header for Thunderbolt 3.0 AOC support

Expansion Slots

PCI-Express

4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8

M.2

Interface: PCIe 3.0 x4
Form Factor: M-Key 2260, 2280, 22110

System BIOS

BIOS Type

UEFI 128M

Management

Software

Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring

Voltage

+1.8V, +12V, +3.3V, +5V, +5V standby

FAN

8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors

Temperature

N/A

LED

N/A

Other Features

Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
