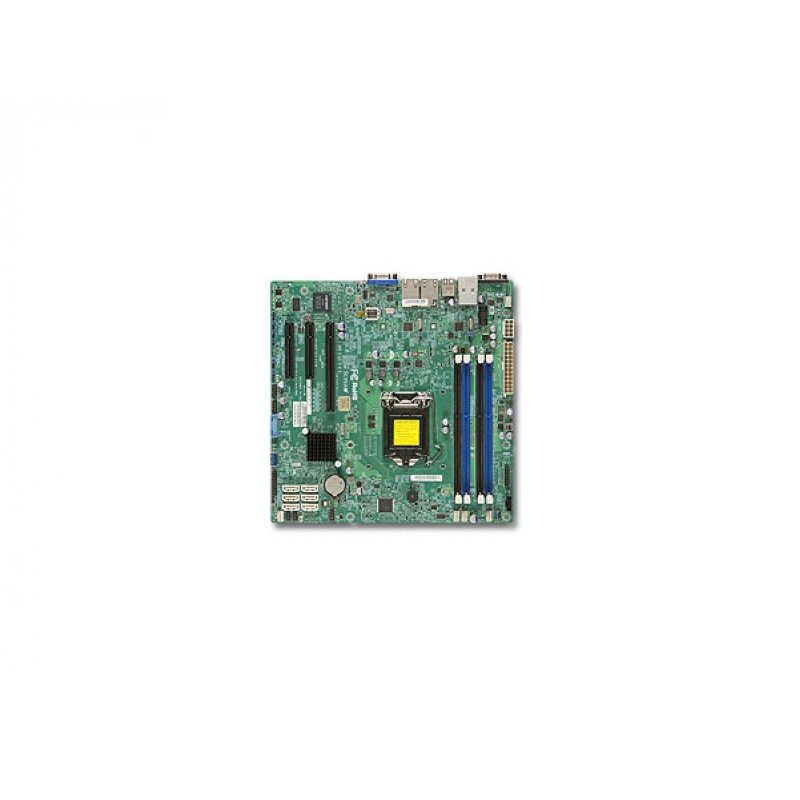

Mainboard Supermicro MBD-X10SLH-F
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM242 / MBD-X10SLH-F-O
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Mainboard Supermicro MBD-X10SLH-F
Key Features
1. Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3, 4th gen. Core
i3, Pentium, Celeron processors
2. Intel® C226 Express PCH
3. Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
4. Dual Gigabit Ethernet LAN ports via 2x Intel® i210AT
5. 6x SATA (6Gbps)
6. 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots
7. 4x USB 3.0 (2 in the rear, 1 Type-A, 1 via header) 6x USB 2.0 (4 rear, 2 via
header)
8. Integrated IPMI 2.0 with KVM and Dedicated LAN
9. SATA DOM power connector support
10. VGA D-sub connector, TPM header
11. Support Intel VHD and Node Manager
Specifications
Product SKUs |
|
| MBD-X10SLH-F | X10SLH-F (Bulk Pack) |
Physical Stats |
|
| Form Factor | uATX |
| Dimensions | 9.6" x 9.6", (24.4cm x 24.4 cm) |
Processor/Cache |
|
| CPU | Intel® Xeon® processor E3-1200 v3 and 4th
Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150) |
System Memory |
|
| Memory Capacity | 4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
| Chipset | Intel® C226 Express PCH |
| SATA | SATA3 (6Gbps) w/ RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform
Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Controllers | Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) |
| VGA | BMC integrated Aspeed AST2400 |
Input / Output |
|
| Serial ATA | 6x SATA3 (6Gbps) ports |
| LAN | 2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 4x USB 3.0 ports (2 rear, 1 Type-A, 1 via
header) 6x USB 2.0 ports (2 rear, 4 via header) |
| VGA | 1x VGA D-Sub Connector |
| Serial Port / Header | 2x COM ports (1 rear, 1 header) |
| DOM | SATA DOM (Disk on Module) power connector support |
| TPM | 1x TPM 1.2 20-pin Header |
Expansion Slots |
|
| PCI-Express | 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support |
Management |
|
| Software | IPMI (Intelligent Platform Management
Interface) v2.0 with KVM support SuperDoctor® III Watch Dog NMI |
| Power Configurations | ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on |
Note: For optimized or compatible chassis, additional parts may be repuired,
please check with Supermicro sales rep
Tag: x10
