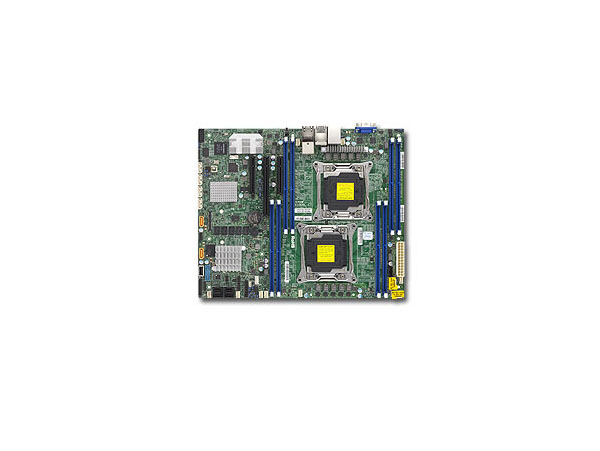

Mainboard Supermicro MBD-X10DRL-CT
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM171 / MBD-X10DRL-CT-O
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Mainboard Supermicro MBD-X10DRL-CT
Key Features
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
4. 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
5. Intel® i210 Dual GbE LAN ports; Intel® X540 Dual 10GBase-T ports
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. 8x SAS3 (12Gbps) via LSI 3108; HW RAID 0, 1, 5, 6, 10, 50, 60; SuperCap
Option support
8. 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
9. 4x USB 3.0 (2 rear, 2 via header) 3x USB 2.0 (2 via header, 1 Type A)
Specifications
Product SKUs |
|
| MBD-X10DRL-CT -O | X10DRL-CT (Standard Retail Pack) |
| MBD-X10DRL-CT -B | X10DRL-CT (Bulk Pack) |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12" x 10" (30.48cm x 25.4cm) |
Processor/Cache |
|
| CPU | Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
System Memory |
|
| Memory Capacity | Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots |
| Memory Type | 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SAS |
LSI 3108 SAS3
(12Gbps) controller; 2GB cache with SuperCap backup option; HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. |
| IPMI |
Support for
Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers |
Intel® X540 10GBase-T
controller Intel® i210 Gigabit Ethernet controller Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | ASPEED AST2400 BMC |
Input / Output |
|
| SAS | 8x SAS3 (12Gbps) ports |
| SATA |
6x SATA3 (6Gbps)
ports I-SATA 4 and I-SATA 5 support SATA DOM |
| LAN |
2x RJ45 10GBase-T LAN
ports 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB |
4x USB 3.0 ports (2
rear + 2 via header) 3x USB 2.0 ports (2 via header + 1 Type A) |
| Video | 1x VGA port |
| Serial Port / Header | 1x COM port (1 header) |
| DOM |
2x SuperDOM (Disk on
Module) ports 1x SATA DOM power connector |
| TPM | 1x TPM 1.2 20-pin Header |
Expansion Slots |
|
| PCI-Express |
1x PCI-E 3.0 x16 2x PCI-E 3.0 x8 |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
Plug and Play (PnP) PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
Management |
|
| Software |
IPMI 2.0 SPM SUM SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog |
| Power Configurations |
ACPI Power Management Power-on mode for AC power recovery |
Note: For optimized or compatible chassis,
additional parts may be repuired, please check with Supermicro sales rep
