LSI MegaRAID SAS 9341-8i
- Mã sản phẩm TM795
- Tình trạng: Liên hệ đặt hàng
- 6.770.000 VNĐ
Giá trên chưa bao gồm thuế VAT 10%
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm LSI MegaRAID SAS 9341-8i

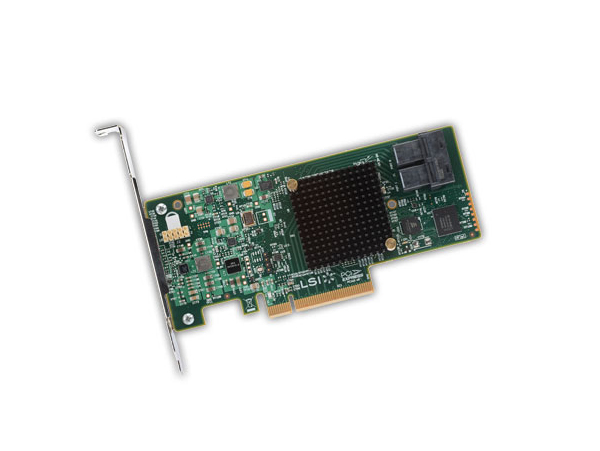

LSI MegaRAID SAS 9341-8i
Email, file, SharePoint, and similar critical apps must scale easily over time
while remaining both highly protected and easily manageable. That’s where the
MegaRAID® SAS 9341-8i 12Gb/s SAS and SATA RAID controller card can add real
value. Designed for small and medium businesses (SMBs) with tower and
rack-mounted and servers, it provides the headroom required for future growth at
an affordable price point.
- Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives
in RAID mode with four internal 12Gb/s SATA and SAS ports
- Support high-bandwidth applications with PCIe® 3.0 connectivity
- Fit into 1U/2U rack-mounted servers and compact servers with low-profile
form factor
- Balance protection and performance for critical applications with RAID
levels 0, 1, 5, 10 and 50
| Product | Ordering Part # | What's in the box |
| MegaRAID SAS 9341-8i | LSI00407 | MegaRAID SAS 9341-8i, QIG, LP bracket |
| Specifications | Value | |
| RAID-on-Chip Controller | LSISAS3008 PowerPC 476 controller @ 1.2 GHz | |
| RAID Management Software | MegaRAID Storage
Manager StorCLI (command-line interface) CTRL-R (BIOS configuration utility) HII (UEFI Human Interface Infrastructure) |
|
| Cache Protection | - | |
| Physical Dimensions | 6.6" x 2.536" (Low-Profile) | |
| Host Bus Type | x8 lane PCI Express® 3.0 | |
| Cache Memory | - | |
| Internal Ports | 8 | |
| Data Transfer Rates | Up to 12Gb/s per port | |
| Devices Supported | Non-RAID (JBOD
Mode): 64 RAID 0: 32 per volume RAID 1: 2 per volume plus hot spare RAID 5: 32 per volume RAID 10: 32 per volume RAID 50: 32 per volume |
|
| Internal Connectors | 2 HD Mini-SAS SFF8643 (Horizontal mount) | |
| MTBF | >2,800,000 hours | |
| Operating Temperature | 0°C to 70°C | |
| Operating Voltage | +12V | |
| Operating Systems | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support | |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 | |
