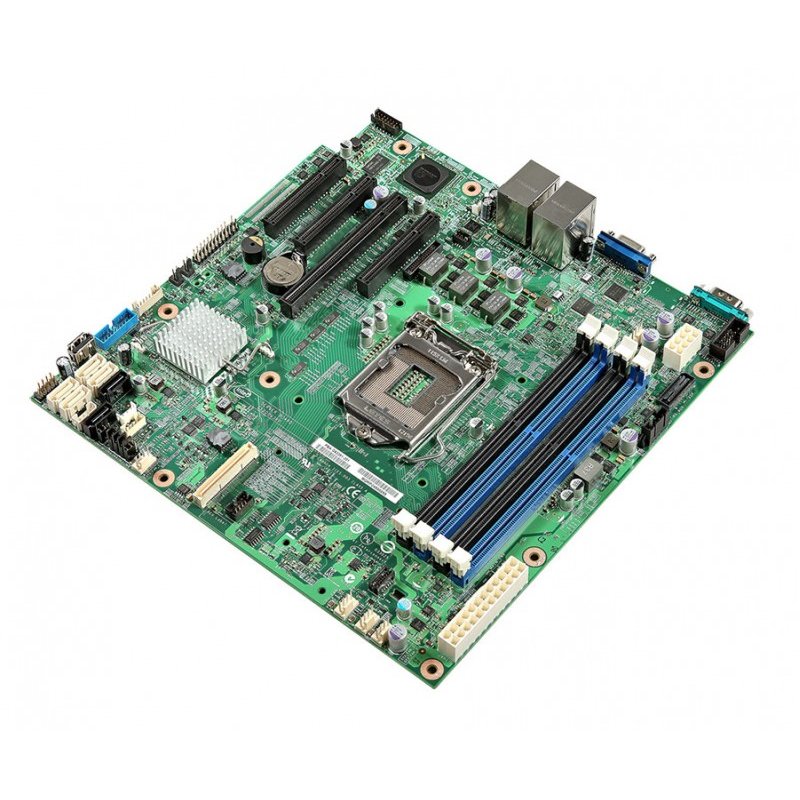

Intel® Server Board S1200V3RPL
- Nhà sản xuất: Intel
- Mã sản phẩm TM1019
- Tình trạng: Ngừng kinh doanh
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Intel® Server Board S1200V3RPL
Intel® Server Board S1200V3RPL
Specifications.
| Essentials | |
| Status | Launched |
| Launch Date | Q2'13 |
| Compatible Product Series | Intel® Xeon® Processor E3-1200 v4 Family |
| Board Form Factor | uATX |
| Chassis Form Factor | 4U Rack or Pedestal |
| Socket | LGA1150 |
| Integrated Systems Available | Yes |
| Integrated BMC with IPMI | IPMI 2.0 |
| Rack-Friendly Board | Yes |
| Embedded Options Available | Yes |
| TDP | 95 W |
| Included Items | Intel® Server Board S1200V3RPL with (4) SATA Cables (1) I/O Shield (1) Intel® Server Deployment & Management DVD (1) Attention document and (1) Quick Start User’s Guide. |
| Board Chipset | Intel® C226 Chipset (Intel® DH82C226 PCH) |
| Description | An entry-level one socket board with Intel® C226 chipsetsupporting one Intel® Xeon® Processor E3-1200 family, 4 UDIMMs at up to 1600MHz and dual integrated Intel® Ethernet Controller. Optional mezzanine connector or Intel® Remote Management Module 4. |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3L ECC UDIMM 1333/1600 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 25.6 GB/s |
| Physical Address Extensions | 40-bit |
| Max # of DIMMs | 4 |
| ECC Memory Supported ‡ | Yes |
| DIMM Type | UDIMM |
| Graphics Specifications | |
| Integrated Graphics ‡ | Yes |
| Graphics Output | VGA |
| Discrete Graphics | Supported |
| Expansion Options | |
| PCI Express Revision | 3.0 |
| Max # of PCI Express Lanes | 16 |
| PCIe x8 Gen 3 | 1 |
| PCIe x8 Gen 3 | 1 |
| PCIe x1 Gen 2.x | 1 |
| PCIe x4 Gen 2.x | 1 |
| PCIe x8 Gen 2.x | 1 |
| Connector for Intel® I/O Expansion Module x8 Gen 3 | 1 |
| Connector for Intel® Integrated RAID Module | 1 |
| I/O Specifications | |
| USB Revision | 2.0 and 3.0 |
| # of USB Ports | 4 |
| Total # of SATA Ports | 6 |
| RAID Configuration | Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
| # of Serial Ports | 1 |
| # of LAN Ports | 2 |
| Integrated LAN | 2x 1GbE |
| Firewire | No |
| Embedded USB (eUSB) Solid State Drive Option | Yes |
| Integrated SAS Ports | 0 |
| Integrated InfiniBand* | No |
| Package Specifications | |
| Max CPU Configuration | 1 |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® Remote Management Module Support | Yes |
| Intel® Node Manager | Yes |
| TPM Version | 1.2 |
| Intel® Quick Resume Technology | No |
| Intel® Quiet System Technology | No |
| Intel® HD Audio Technology | No |
| Intel® Matrix Storage Technology | No |
| Intel® Rapid Storage Technology | No |
| Intel® Rapid Storage Technology enterprise | Yes |
| Intel® Fast Memory Access | Yes |
| Intel® Flex Memory Access | No |
| Intel® I/O Acceleration Technology | Yes |
| Intel® Advanced Management Technology | Yes |
| Intel® Server Customization Technology | No |
| Intel® Build Assurance Technology | No |
| Intel® Efficient Power Technology | No |
| Intel® Quiet Thermal Technology | No |
| Intel® Data Protection Technology | |
| AES New Instructions | Yes |
| Intel® Platform Protection Technology | |
| Trusted Execution Technology ‡ | Yes |
