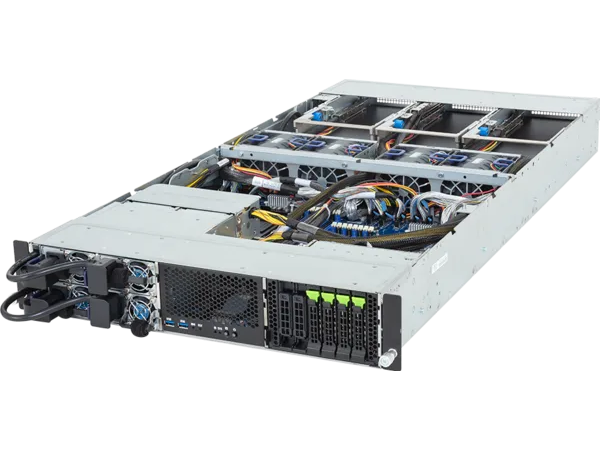

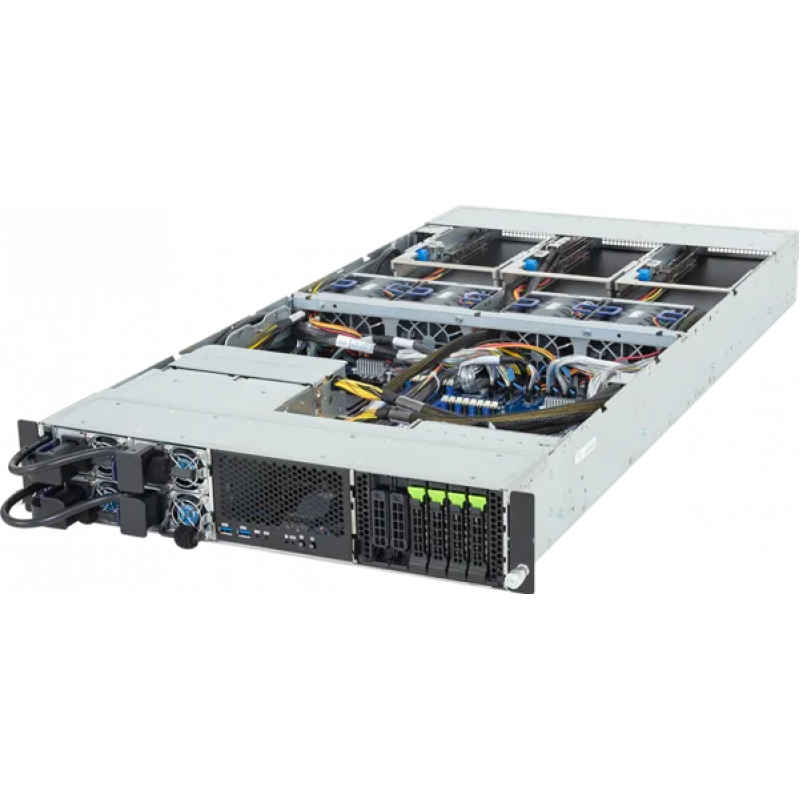

GIGABYTE Rack Server XV24-SX0-AAJ1

Key Applications

• AI
• Visual Computing
• HPC
• AI Training
• AI Inference

Key Features

1. Supports up to 4 x Dual slot Gen5 GPUs
2. Supports 4 x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges
3. NVIDIA MGX™ modular Server design
4. Dual Intel® Xeon® 6700/6500-Series Processors
5. 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
6. 2 x 10Gb/s LAN ports via Intel® X550-AT2
7. 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8. 2 x M.2 slots with PCIe Gen5 x2 interface
9. 4 x FHFL PCIe Gen5 x16 slots for GPUs
10. 2 x FHFL PCIe Gen5 x16 slots for NVIDIA ConnectX®-7 NICs
11. 1 x FHFL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
12. 3+1 2000W 80 PLUS Titanium redundant power supplies

PRODUCT DATASHEET

GIGABYTE Rack Server XV24-SX0-AAJ1
