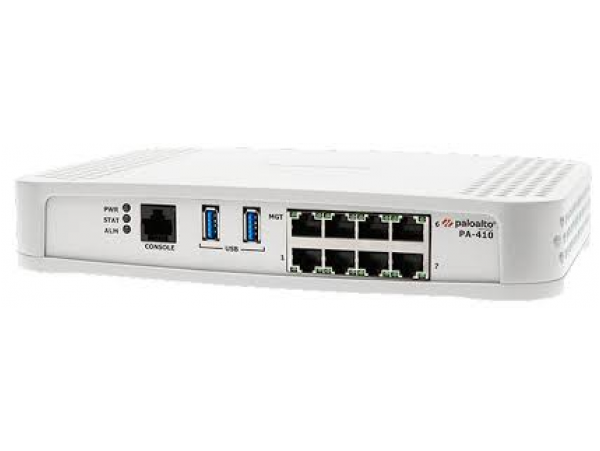

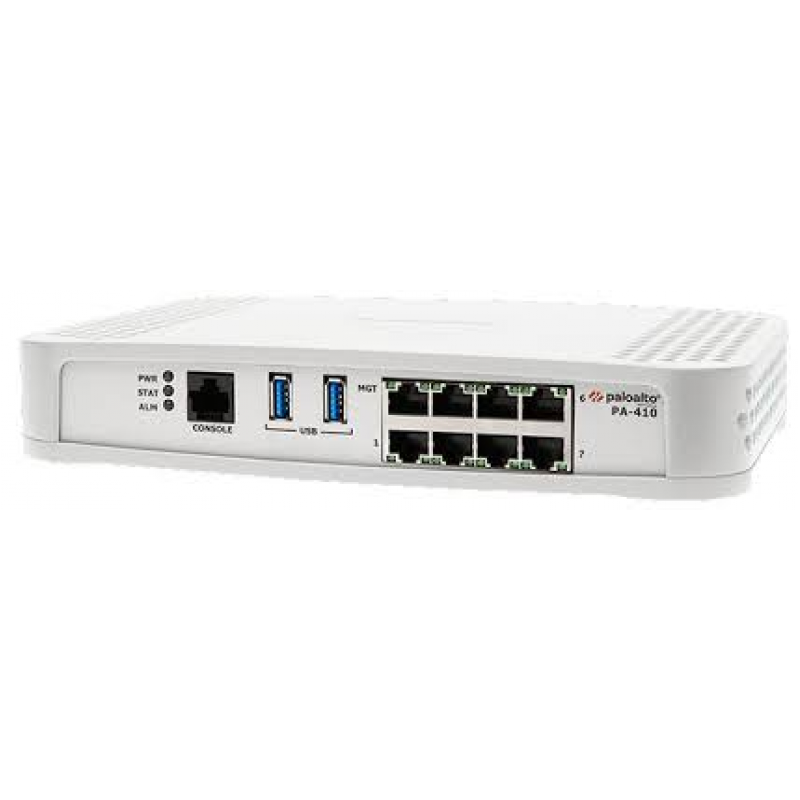

Firewall Palo Alto PAN-PA-410 (PA-410)

Features

Firewall throughput (appmix)

1.4 Gbps

Threat Prevention throughput (appmix)

0.8 Gbps

IPSec VPN throughput

0.5 Gbps

Maximum concurrent sessions

64,000

New sessions per second

11,000

Virtual systems (base/max)

1/1

Local management

WebUI / CLI

Centralized management

Panorama, Strata Cloud Manager

Application visibility and control

App-ID

User identification

User-ID

URL filtering

Advanced URL Filtering

Threat Prevention

Antivirus, Anti-Spyware, Vulnerability Protection

WildFire sandboxing

Supported

DNS Security

Supported

SD-WAN

Supported

High availability

Active/Passive

Routing support

Static, RIP, OSPF, BGP

IPv6 support

Yes

QoS

Yes

VLANs

4,094

Aggregate interfaces (LACP)

Supported

Hardware specifications

Dimensions (H x W x D)

1.63 x 9.53 x 6.42 in

Form factor

Desktop

Integrated I/O

7 x 1GbE RJ-45

Management ports

1 x RJ-45

Console ports

1 x RJ-45

USB

1 x USB

Storage

64 GB eMMC

Power supply

External adapter

Power consumption

~17W average

Redundancy

None

Cooling

Fanless

Noise

0 dBA

Rack mountable

Yes (optional rack kit)

Weight

3.1 lb

Operating temperature

0°C to 40°C

Non-operating temperature

-20°C to 70°C

Humidity

10–90% non-condensing

Altitude

3000 m max

Compliance

FCC, CE, VCCI, CB, cTUVus
