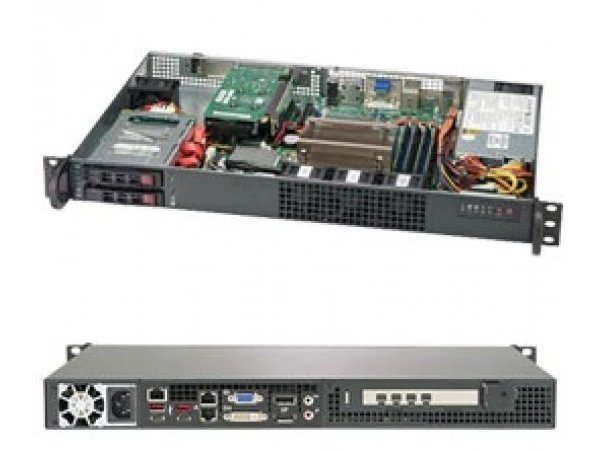

Thông tin sản phẩm Embedded IoT edge server SYS-1019C-HTN2
- Compact 1U Embedded
- Video Surveillance
- Network Security
- Office Server, DVR/NVR
- Digital Signage, POS
1. Single Socket H4 (LGA 1151) supports
Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™ i5/Core™ i3/
Pentium®/Celeron® series Processor,
Intel® Xeon® E processor (Coffee Lake-S) Server/Workstation
2. Intel® C246 chipset
3. 2 Hot-swap 2.5" SATA3 drive bays
4. Up to 64GB unbuffered ECC/non-ECC
UDIMM, up to DDR4-2666MHz;
4 DIMM slots
5. 1 PCI-E 3.0 x16 (HHHL) slot,
M.2 (M key, 22110/80, PCI-E 3.0 x4/SATA)
6. 2 GbE LAN ports, 1 dedicated IPMI LAN
7. 4 USB 3.1 (3 Type A, 1 Type C)
8. 2 DP, DVI-I, VGA, ALC 888S HD Audio
9. 200W Low Noise AC-DC Power Supply with PFC, Gold Certified
