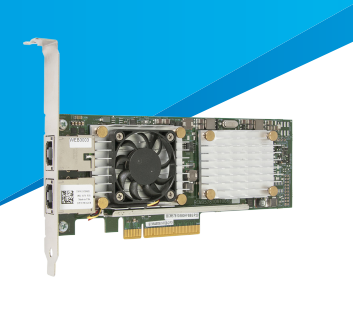

FEATURES
• Dual-port 10GbE connectivity for Dell PowerEdge rack and towerservers
• x8 PCI Express® (PCIe®) v2.0 (5 GT/s) support
• Full iSCSI hardware offload
• Full Fibre Channel over Ethernet (FCoE) hardware offload1
• Network boot support:
– iSCSI remote boot
– FCoE boot from SAN1
– Pre-execution environment (PXE) 2.0
• MSI and MSI-X support
• IPv4 and IPv6 offloads
• PCI-SIG® single root input/output virtualization (SR-IOV) support
• Comprehensive stateless offloads
• RX/TX multiqueue
SPECIFICATIONS
Ports
• Dual 10Gbps BASE-T Ethernet ports
Form Factor
• PCI Express short, low-profile card; also available in full-height
• 6.60in×2.71in (167.64mm×68.91mm)
Supported Servers
• 13th Generation: R630, R730, R730xd, and T630
• 12th Generation: R320, R420, R520, R620, R720, R720xd, R820, T420, and T620
Connector
• RJ45
Cable
• CAT6a/7 up to 100 meters
• CAT6 up to 40 meters
Certifications
• RoHS, FCC A, UL, CE, VCCI, BSMI, C-Tick, KCC, TUV, and ICES-003
