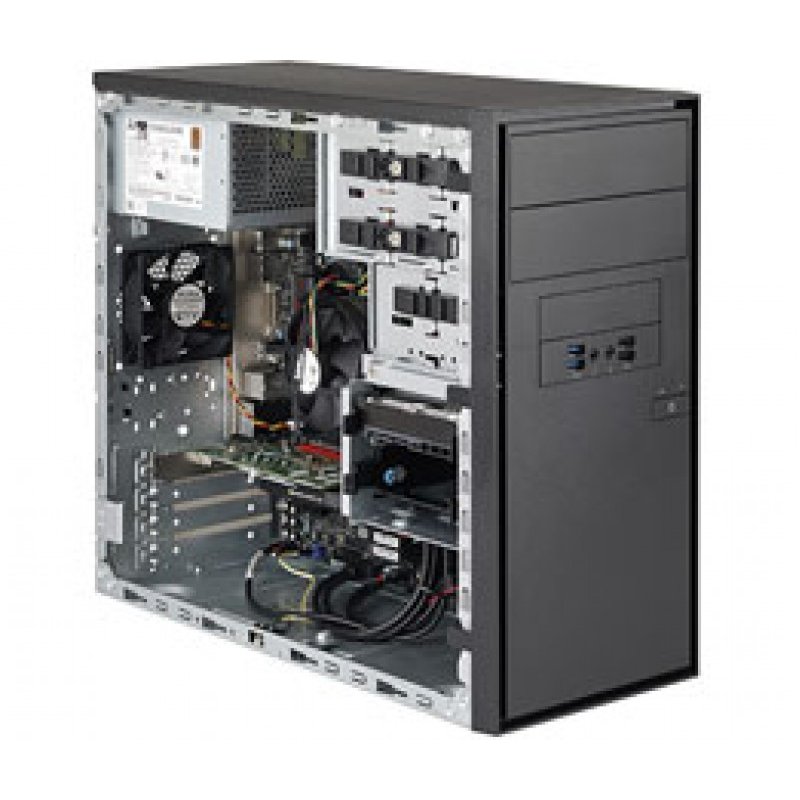

Thông tin sản phẩm Chassic Supermicro CSE-DS3A-261B
Key Features
Product SKUs
CSE-DS3A-261B
SuperChassis DS3A-261B
Form Factor
Mini-Tower Chassis - supports for maximum motherboard sizes of 9.6" x 9.6"
Processor Support
Single Intel® and AMD processors
Dimensions
Height
14.65" (372 mm)
Width
6.89" (175 mm)
Depth
16.85" (428 mm)
Net Weight
13.45 lbs (6.1 kg)
Gross Weight
15.87 lbs (7.2 kg)
Packaging (W x H x L)
10.63" (270 mm) x 18.7" (475 mm) x 20.08" (510 mm)
Available Color
Black
Expansion Slots
4 full-height & full-length expansion slot(s)
Drive Bays
2 x 5.25" drive bay
2 x 3.5" fixed drive bay
1 x 2.5" fixed drive bay
Front Panel
Buttons
Power On/Off button
LEDs
1 Network Activity LEDs
HDD activity LED
Power LED
Ports
2x USB 2.0 Port(s)
2x USB 3.0 Port(s)
2x Audio Jack(s)
Motherboard (for CSE- DS3A-261B)
C7C232-CB-ML C7H270-CG-ML
C7Q270-CB-ML C7B250-CB-ML
C7Z270-CG-M C7B250-CB-MK
Servers (for CSE- DS3A-261B)
5130DQ-IL
Systems Cooling
Fans
1 x 80mm Rear fan(s)
