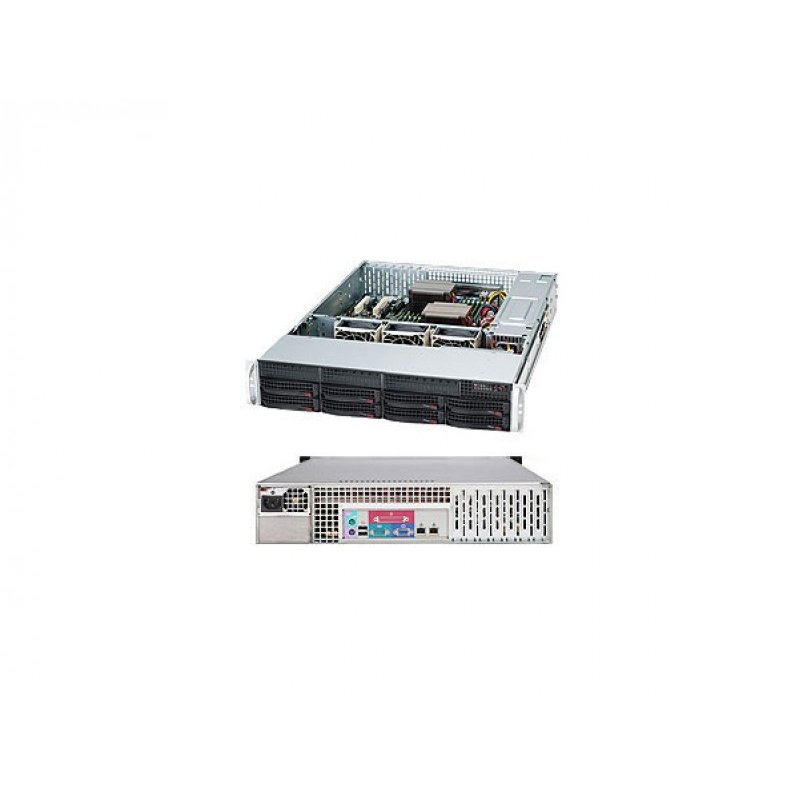

Chassic Supermicro CSE-825TQ-563LPB
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM204 / CSE-825TQ-563LPB
- Tình trạng: Liên hệ đặt hàng
Giá bán: Call
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Chassic Supermicro CSE-825TQ-563LPB
Key Features
1. 560W High-efficiency Power Supply Gold Level Certified
2. 8x 3.5" Hot-swap SAS / SATA Drive Bays
3. 1x Slim DVD-ROM Drive (Optional)
4. Adjustable Air Shroud
5. 7x Low-profile, Full-length I/O Expansion Slots
6. 1x Serial, 2x USB Front Access I/O (optional)
7. 2x Fixed 3.5" Drive Bays
8. Full SES2 support is available with SAS motherboards and other compatible
components.
Product SKUs |
|||
| CSE-825TQ-563LPB | SuperChassis 825TQ-563LPB (Black) | ||
Form Factor |
|||
| 2U chassis support for motherboard size - 12" x 13", 13.68" x 13" E-ATX and 12" x 10" ATX | |||
Processor Support |
|||
| Supports dual, single Intel® / AMD processors | |||
Dimensions |
|||
| Height | 3.5" (89mm) | ||
| Width | 17.2" (437mm) | ||
| Depth | 25.5" (648mm) | ||
| Gross Weight | 50 lbs (22.7kg) | ||
| Available Colors | Black | ||
Expansion Slots |
|||
| 7x low-profile full-length expansion slots | |||
Drive Bays |
|||
| Hot-swap | 8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended |
||
| SATA Backplane | |||
| 1x 2U SAS / SATA Backplane w/ Enclosure Management | |||
| CD-ROM | 1x Slim DVD-ROM Drive (option) 1x Front USB + COM tray (option) |
||
Front Panel |
|||
| Buttons | Power On/Off button System Reset button |
||
| LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED |
||
| Power Supply | 560W AC power supply w/ PFC (24-pin) | ||
Standard Parts List |
|||
| Part Number | Qty | Description | |
| Chassis | CSE-825TQ-563LPB | 1 | 2U Chassis (Black) |
| Backplane | MCP-310-28001-0N | 1 | SC825/826/216/213 Intel DP X8X7 PC air shroud [ Manual ] |
| Power Supply | PWS-563-1H | 1 | 560W high-efficiency ( Gold) 1U multi output Power Supply |
| Power Supply | CSE-PT0130L | 1 | Power supply dummy cover (131x40x76mm) |
| Fan(s) | FAN-0094L4 | 3 | 2U, 80x38mm 4-pin PWM fan with HUS |
| Fan Holder | MCP-320-82902-0N | 1 | Fan tray for 4pcs 80x38 hot-swap fan for SC829, SC219 |
| Drive Trays | MCP-220-00024-0B | 8 | Hot-swap 3.5" hard drive trays (black) |
| Drive Trays | MCP-220-82502-0B | 2 | FDD dummy tray support 1x 3.5" HDD |
| Drive Trays | MCP-220-00007-01 | 1 | Black USB Dummy Tray |
| Mounting Rails | MCP-290-00053-0N | 1 | 26.5" to 36.4" rail set, quick/quick, default for 2, 3U 17.2" W chassis |
| Rail Adaptor | MCP-290-00060-0N | 1 | Square hole to round hole rail adaptor set |
