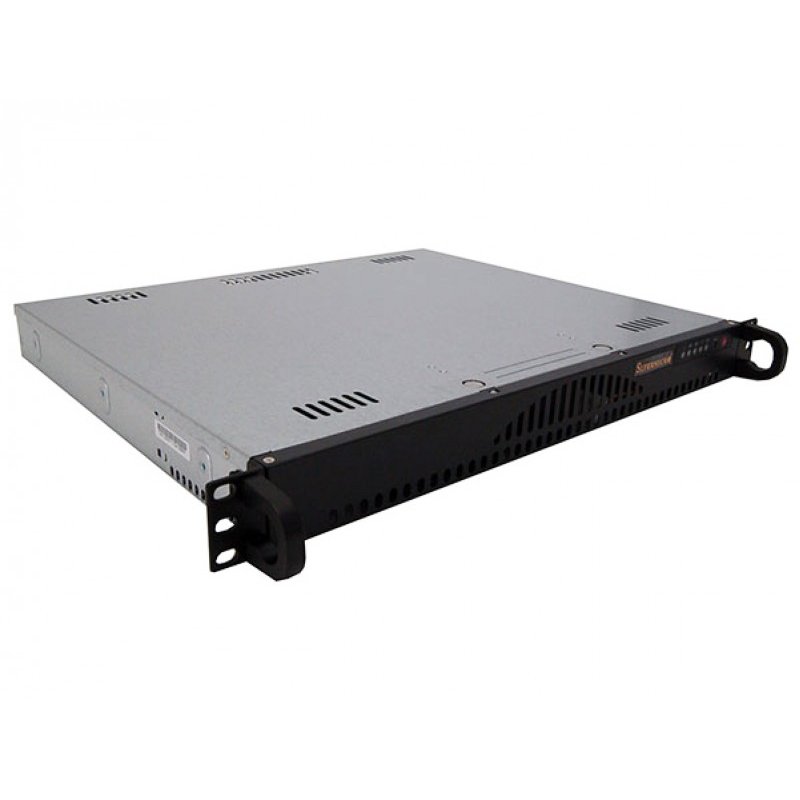

Thông tin sản phẩm Chassis Supermicro CSE-512L-260B
Key Features
1. 260W Power Supply
2. 2x 3.5" Internal Drive Bays
3. 1x 10cm Blower Fan
4. 1x I/O Expansion Slot
5. 2x Rear USB 2.0 Ports
6. Power Switch, Reset, and 5x LED Indicators
Product SKUs
|
CSE-512L-260 |
SuperChassis 512L-260 (Beige) |
CSE-512L-260B |
SuperChassis 512L-260B (Black) |
Form Factor
|
14" Mini 1U chassis support for max. motherboard size -
12" x 9.6" ATX |
Processor Support
|
Supports single Intel® / AMD processor |
|
Dimensions
|
Height |
1.7" (43mm) |
Width |
16.8" (426mm) |
Depth |
14.0" (356mm) |
Gross Weight |
14 lbs (6.4kg) |
Available Colors |
Beige, Black |
Expansion Slots
|
1x full-height half-length expansion slot (Riser Card
Required) |
|
Drive Bays
|
Internal Bay |
2 x 3.5" SAS / SATA Hot-swap drive bays
SAS or enterprise SATA HDD only recommended |
SATA Backplane |
1x 1U Serial ATA backplane |
|
Front Panel
|
Buttons |
Power On/Off button
System Reset button |
LEDs |
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED |
Power Supply |
Thermal control 260W AC power supply with
PFC |
Standard Parts List
|
|
Part Number |
Qty |
Description |
Chassis |
CSE-512L-260 |
1 |
1U Chassis (Beige) |
CSE-512L-260B |
1 |
1U Chassis (Black) |
Cable(s) |
CBL-0049L |
1 |
Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm) |
Fan(s) |
FAN-0059L4 |
1 |
10CM 4PIN PWM BLOWER FOR SC813, PBF |
Power Supply |
PWS-0055 |
1 |
260W/1U/SP262-1S/FOR SC512C,SC811i/T |
