Output

Output Power Capacity 700 Watts            / 1000 VA

Max Configurable Power 700 Watts         / 1000 VA

Nominal Output Voltage 230V

Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load 88.0%

Output Voltage Distortion Less than 3%

Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1

Other Output Voltages 220,240

Crest Factor 3 : 1

Waveform Type Sine wave

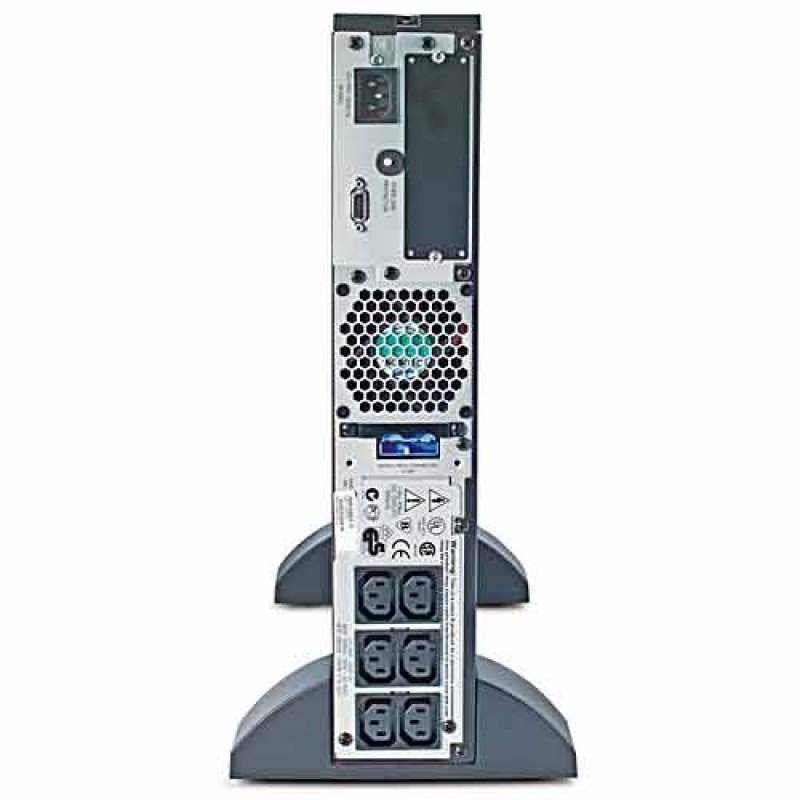

Output Connections

(6) IEC 320 C13

(2) IEC Jumpers

Bypass Built-in Bypass

Input

Nominal Input Voltage 230V

Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations 160 - 280V

Input voltage adjustable range for mains operation 100 - 280V

Other Input Voltages 220,240

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules 1

Typical recharge time 3 hour(s)

Replacement Battery RBC31

RBC™ Quantity 1

Extended Run Options APC Smart-UPS RT 1000VA 230V

Runtime Graph

Curve    Part Number(s)

A             SURT1000XLI

B             SURT1000XLI

+ (1)SURT48XLBP

C             SURT1000XLI

+ (2)SURT48XLBP

D             SURT1000XLI

+ (3)SURT48XLBP

E              SURT1000XLI

+ (4)SURT48XLBP

Hover over the line on the graph above to view the runtime at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph View Runtime Chart

Communications & Management

Interface Port(s) DB-9 RS-232,SmartSlot

Available SmartSlot™ Interface Quantity 1

Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO) Optional

Surge Protection and Filtering

Surge energy rating 420 Joules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 432.00 mm

Maximum Width 85.00 mm

Maximum Depth 483.00 mm

Rack Height 2U

Net Weight 23.00 KG

Shipping Weight 27.80 KG

Shipping Height 286.00 mm

Shipping Width 630.00 mm

Shipping Depth 594.00 mm

Color Black

Units per Pallet 12.00

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95%

Operating Elevation 0-3000 meters

Storage Temperature -20 - 50 °C

Storage Relative Humidity 0 - 95%

Storage Elevation 0-15000 meters

Audible noise at 1 meter from surface of unit 50.00 dBA

Online Thermal Dissipation 324.00 BTU/hr
